PVE Pneumatic Elevators

Powered by Air. Designed for Life.

The PVE isn’t just an elevator—it’s a breakthrough in vertical mobility. Engineered with air-powered technology, this self-supporting lift brings a smooth, quiet ride to your home without the need for a shaft, pit, or machine room. With its panoramic glass design and compact footprint, the PVE redefines what’s possible in residential accessibility—blending modern innovation with everyday comfort.

PVE30
Single Passenger
Residential Elevator

  • Capacity: 350lb

  • External Dimension: 30”

  • Wheelchair Accessible

    • No pit, hoist way, or machine room required

    • 50 ft (15m) Total Rise Max

    • 35 ft/M traveling speed

    • Two to Five Stops

    • External cylinder diameter: 30 inches (750mm)

    • Internal cabin diameter: 20 ½ inches (521mm)

    • Internal cabin height: 6’7” (79 inches/ 2005mm)

    • Entrance way opening: 20 ½ inches (521mm)

    • Through Floor or Balcony Mount Landings

    • Power Supply: 25 AMP 220VAC

    • In-line door openings

    • Aluminum and polycarbonate cylinder structure

    • Automatic interior LED lighting and fan

    • Mechanical emergency safety brake system

    • One year limited manufacturer warranty

PVE37
Two Passenger
Residential Elevator

  • Capacity: 450lb

  • External Dimension: 37”

  • Wheelchair Accessible

    • No pit, hoistway, or machine room required

    • Maximum total rise: 50 ft (15 m)

    • Travel speed: 35 ft/min

    • Stops: 2–5

    • External cylinder diameter: 37 in (940 mm)

    • Cabin interior diameter: 27½ in (700 mm)

    • Cabin interior height: 79 in (2005 mm)

    • Entrance opening: 27½ in (700 mm)

    • Landings: Through-floor or balcony mount options

    • Power supply: 25 A, 220 VAC

    • In-line door configuration

    • Cylinder material: Aluminum with polycarbonate panels

    • Features: Automatic interior LED lighting & ventilation fan

    • Safety: Mechanical emergency brake

    • Warranty: One-year limited manufacturer

PVE52
Three Passenger
Residential Elevator

  • Capacity: 525lb

  • External Dimension: 52” 16/11”

  • Wheelchair Accessible

    • No pit, hoistway, or machine room required

    • Maximum total rise: 50 ft (15 m)

    • Travel speed: 35 ft/min

    • Stops: 2–5

    • External cylinder diameter: 52 in (1320 mm)

    • Cabin interior diameter: 43½ in (1100 mm)

    • Cabin interior height: 79 in (2005 mm)

    • Entrance opening: 43½ in (1100 mm)

    • Landings: Through-floor or balcony mount options

    • Power supply: 25 A, 220 VAC

    • In-line door configuration

    • Cylinder material: Aluminum with polycarbonate panels

    • Features: Automatic interior LED lighting & ventilation fan

    • Safety: Mechanical emergency brake

    • Warranty: One-year limited manufacturer

THE CUBE
Two Passenger
Residential Elevator

  • Capacity: 450lb

  • External Dimension: 36 x 36”

  • Wheelchair Accessible

    • No pit, hoistway, or machine room required

    • Maximum total rise: 35 ft (10.7 m)

    • Travel speed: 35 ft/min

    • Stops: 2–3

    • Exterior footprint: 36 in × 36 in (914 mm × 914 mm)

    • Cabin interior dimensions: 30 in × 30 in (762 mm × 762 mm)

    • Cabin interior height: 79 in (2005 mm)

    • Entrance opening: 30 in × 30 in (762 mm × 762 mm)

    • Landings: Through-floor or balcony mount options

    • Power supply: 25 A, 220 VAC

    • In-line or 90° door configuration

    • Structure: Aluminum and polycarbonate panels

    • Features: Automatic interior LED lighting & ventilation fan

    • Safety: Mechanical emergency brake

    • Warranty: One-year limited manufacturer

Featured Video: Air‑Driven Elevator in Action


A sleek showcase of the PVE pneumatic elevator—highlighting its self-supporting design, energy-efficient air-powered travel, and modern glass tube aesthetic.

Featured in Escape to the Chateau

Witness a stunning PVE pneumatic elevator installation nestled in the turret of a French chateau—showcasing the perfect union of heritage architecture and modern innovation. This project features the PVE37 ascending through multiple stories within the tower, demonstrating its adaptability in complex, historic structures.

Whether preserving period details or enhancing accessibility, the PVE adds both elegance and functionality—with no shaft, machine room, or structural compromise required.

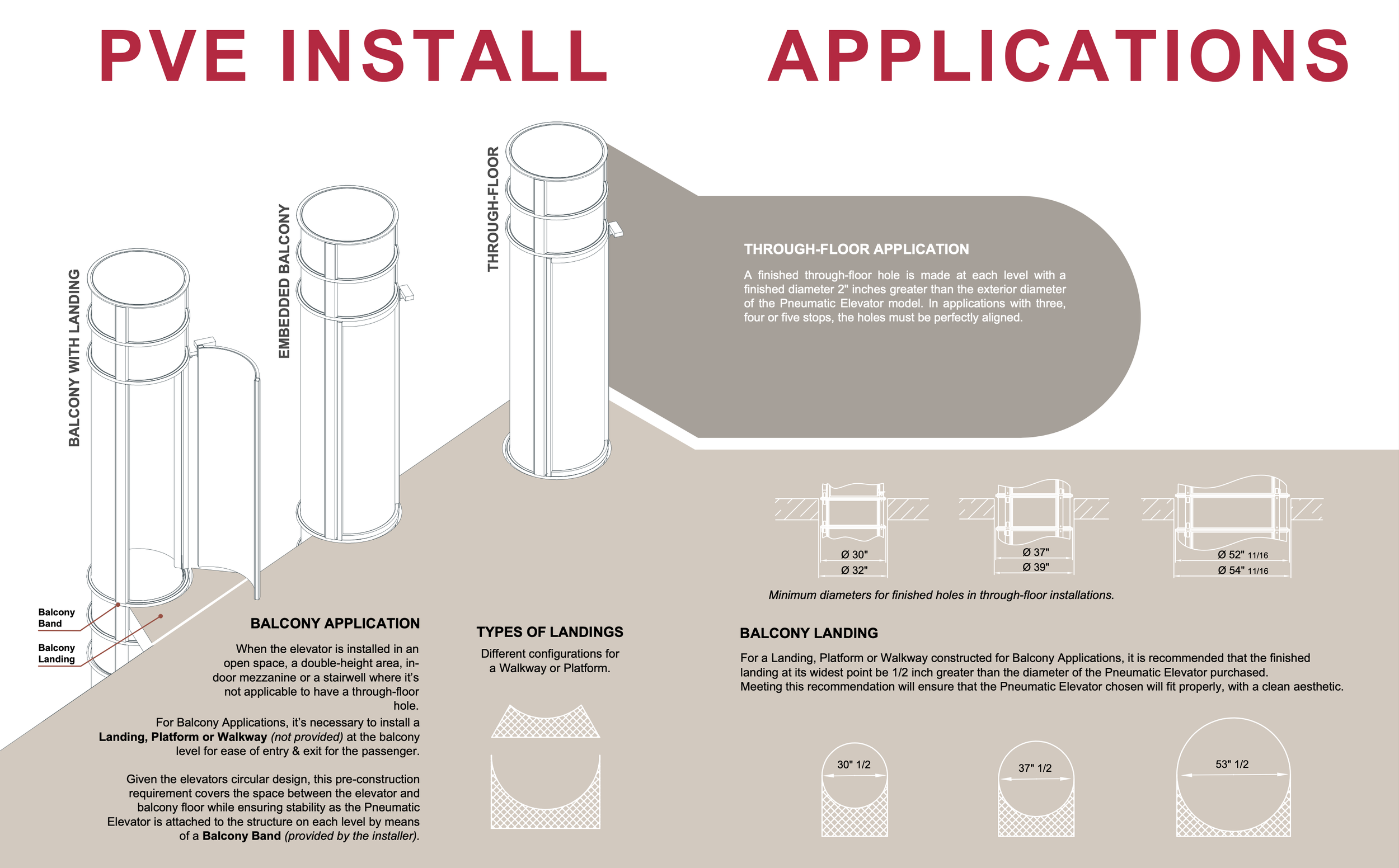

PVE Elevator Design Guide for Architects & Contractors

Explore structural requirements, model dimensions, and layout flexibility for all PVE pneumatic elevator models. With no shaft, pit, or machine room required, PVE elevators are ideal for both retrofit and new construction projects. Designed for clean integration into multi-level residential spaces, they offer a unique mobility solution with minimal architectural disruption.

Designed to Fit Any Space

No Shaft. No Pit. No Machine Room.

PVE elevators are fully self-supporting and operate using air pressure—not cables or hydraulics. That means faster installation, no heavy construction, and seamless integration into nearly any home.

Four Models. One Seamless Experience.

  • PVE30 – Single-Passenger Model
    Our most compact option with a 30" exterior diameter. Ideal for tight spaces and personal use.
    Capacity: 350 lbs | Stops: Up to 5

  • PVE37 – Two-Passenger Model
    A versatile solution that fits most residential layouts.
    Capacity: 450 lbs | Stops: Up to 5

  • PVE52 – Wheelchair-Accessible Model
    Designed for accessibility and larger loads.
    Capacity: 525 lbs | Stops: Up to 5

  • PVE Cube – Modern Square-Frame Design
    A striking square-profile elevator with a 36" x 36" footprint and framed glass enclosure.
    Capacity: 450 lbs | Stops: Up to 3

Compact Footprints, Big Impact

With exterior diameters starting at just 30", PVE elevators require minimal floor space while providing maximum functionality—ideal for retrofits, remodels, and new construction alike.

Simplicity meets innovation. PVE turns limited space into unlimited possibilities.

Smooth, Quiet, Effortless

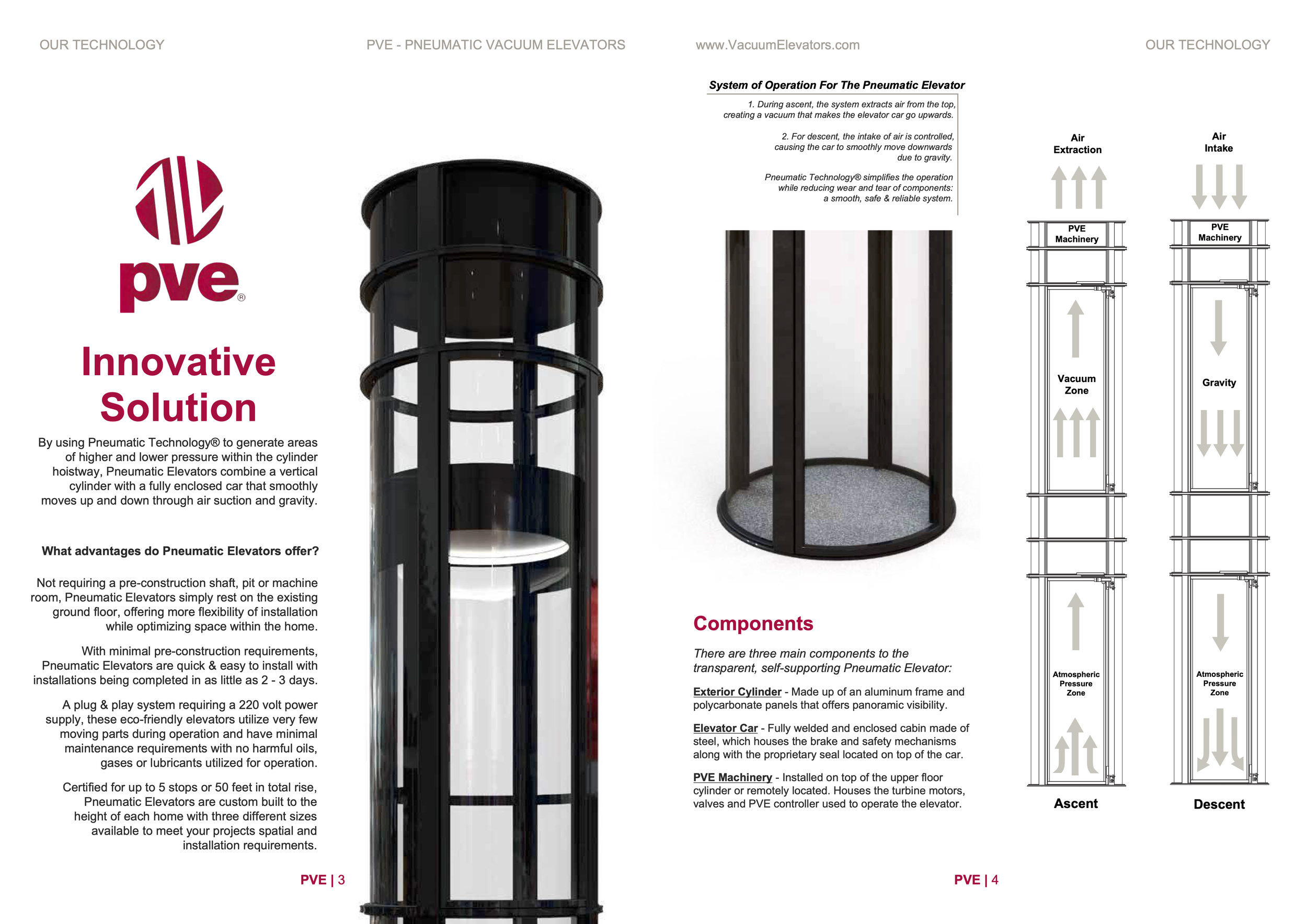

Pneumatic Vacuum Technology

PVE elevators travel vertically using air pressure inside a clear-walled tube—resulting in a smooth, quiet ride without the need for bulky cables or noisy motors.

Eco-Friendly & Efficient

Uses power only to ascend; gravity brings the cab back down, reducing energy use and environmental impact.

Flexible Entry & Layout Options

Choose same-side or opposite-side entry configurations to fit your floorplan. The PVE Cube also features a 90º door orientation for tight corner installations.

Minimal Construction Required

No shaftway, pit, or overhead structure needed. All models install quickly—many in as little as 2 to 3 days—with only standard ceiling height and floor openings required.

Function meets form in a sleek, panoramic elevator that elevates your home and your lifestyle.

Home Elevator Installs in

3 Easy Steps:

1. Site Visit & Quotation

We start with a free in-home consultation or a virtual assessment using photos and measurements. Our team will evaluate your space, answer your questions, and provide a clear, detailed quote tailored to your needs and layout. For new construction, architectural plans can be reviewed.

2. Installation & Service

Once your order is placed, we’ll coordinate the entire installation process. If needed, we’ll work with your contractor—or help connect you with one locally—for quick prep work like creating a floor opening or modifying railings. It’s a simple step, and we’ll walk you through it. Once the site is ready, our skilled technicians complete the elevator installation in just 2–3 days, ensuring everything is safe, clean, and up to code.

3. Ride & Enjoy

After a thorough final inspection and walk-through, your elevator is ready to use. Quiet, smooth, and space-saving—just press a button and enjoy effortless travel between floors for years to come.
