Eclipse Home Elevator
Precision Meets Compact Design
The Eclipse isn’t just an elevator—it’s a movement solution crafted to fit your life seamlessly. With its space-saving modular design, the Eclipse brings a sleek, reliable ride to your home without the need for a machine room. Every detail is designed for ease, elegance, and functionality.
Designed for Every Home
Machine Roomless Option: No extra room required—fits easily within closets or compact spaces.
Capacity: Supports up to 950 lbs (or 1000 lbs with the HD version).
Travel Distance: Up to 50 feet (60 feet in select regions).
Stops: Services up to 6 floors, making it ideal for multi-story homes.
Simplicity redefined. The Eclipse makes accessibility look effortless.
Effortless Performance, Every Time
With a geared chain drive system designed for durability, the Eclipse delivers a ride that is both smooth and quiet. Minimal overhead clearance and flexible configurations mean the Eclipse fits where other elevators can’t—bringing top-tier mobility to more homes.
No Construction Headaches: Requires only 8' ceilings—no ceiling shaftway needed.
Customizable Entry Points: Choose same-side, straight-through, or 90º entry and exit to fit your floor plan.
Easy Access: Innovative hide-away gate maximizes interior space for more comfort.
Eclipse Home Elevator – Complete Specifications and Options
Dive into the full technical details of the Eclipse Home Elevator. In the dropdown section you’ll find comprehensive information on capacity, dimensions, finishes, configurations, optional upgrades, and documentation. Explore everything you need to know to ensure the Eclipse fits your home perfectly.
All the details, all in one place. Browse the complete specs and options to tailor the Eclipse elevator to your lifestyle.
-
Our best-selling home elevator; unique modular design with machine roomless option
Durable geared chain drive for a reliable, stable ride
Services up to 6 stops over a maximum travel distance of 50' (up to 60' in some regions)
Capacity up to 950 lb; Eclipse HD version available for higher capacity (depends on local codes)
Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home
Customize cab interior, fixtures and doors here
-
Machine roomless: Unique design requires only a small space in a closet for components, so a machine room is not needed and less installation time is usually required. In some regions, controller can be placed inside shaft (code permitting).
Compact chain drive system: Requires only 8' ceilings. No ceiling shaftway construction is required.
Hide-away gate: Innovative gate system tucks away for maximum entryway and interior space.
Easy-access service panel: For machine roomless configurations with controller in the shaft, a service panel can be located inside or outside the shaft, making it accessible for maintenance.

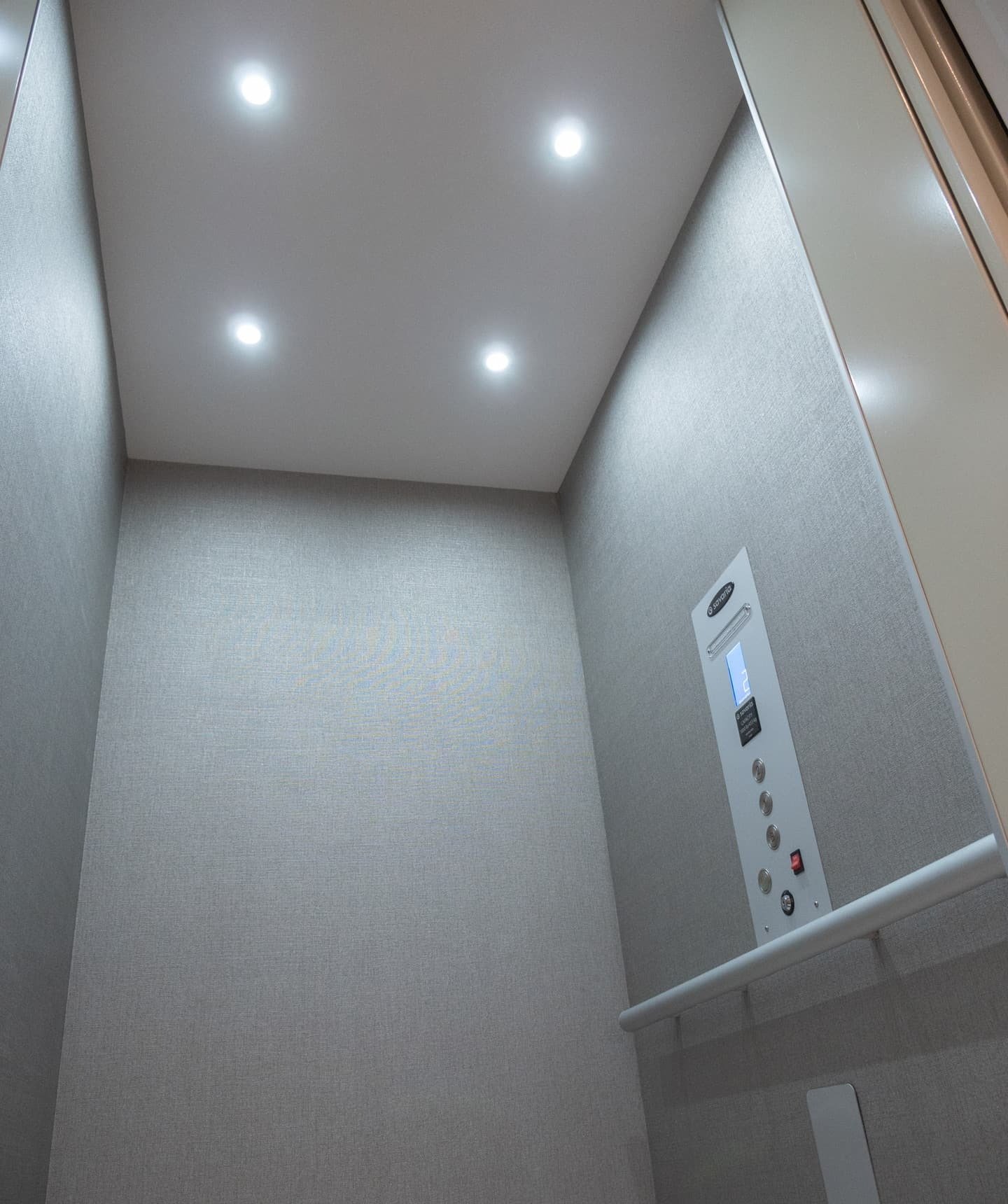

Other standard features: Fully automatic operation, modular rail for easy construction, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, white ceiling with 4 LED pot lights, melamine interior in choice of colors or MDF panels.
Standard finishes: Flat melamine or unfinished MDF (see cab configurator), clear or bronze anodized aluminum cab operating panel and hall call stations, double plywood floor, white ceiling.
Safety features: Battery operated (UPS) emergency lowering and lighting, hand-crank manual lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall stations, slack chain brake system.
Warranty: 36 months parts. Please see complete details here. -
Optional configurations: Type 1, 2, 3, 4 and 5
Cab sizes:
W36'' x L48'' x H80'' (914 mm x 1219 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36'' x L54'' x H80'' (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36'' x L60'' x H80'' (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
W40'' x L54'' x H80'' (1067mm x 1371 mm x2032 mm), Type 1, 2, 3, 4, 5
Custom cab sizes also available
Optional height: 84" (2133mm ), 96" (2438 mm)

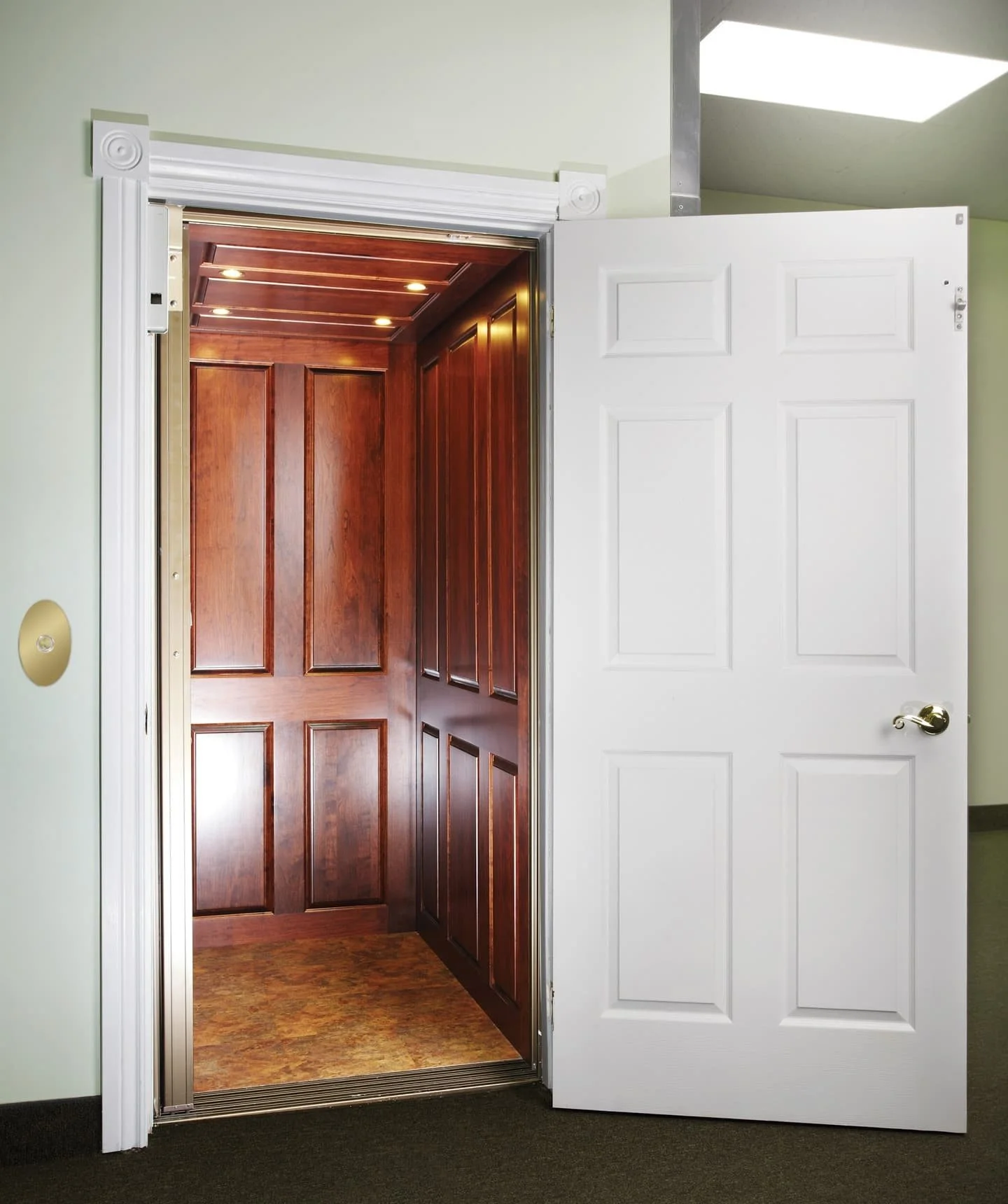

Optional cab finishes: Hardwood, unfinished veneer, luxury MDF, routed white MDF (see cab configurator)
Optional fixture finishes: Brass #4 finish, stainless steel, blackened stainless steel or architectural white (handrail, cab operating panel, hall call stations). Hall call stations available in rectangular or oval design.
Optional touchscreen COP: large touchscreen to operate functions of elevator, customizable for landing names (at time of order), swipe to change animated screen themes. Not available for concurrent landing configurations.
Optional Luxury Flush Door: Complete swing door solution that meets A. 17.1 code, solid 1¾” slab, substantial feeling door, incorporates concealed hinges, hidden Kronenburg interlock (exclusive to Savaria for North America), unique pockets to accommodate ½” drywall to create seamless look, in-frame emergency release accessible from interior of the cabin, low-profile pure white or paintable aluminum frame, with option to incorporate hall call and key switch into frame, standard size 36x80" with custom sizes up to 42" wide and 96" tall.

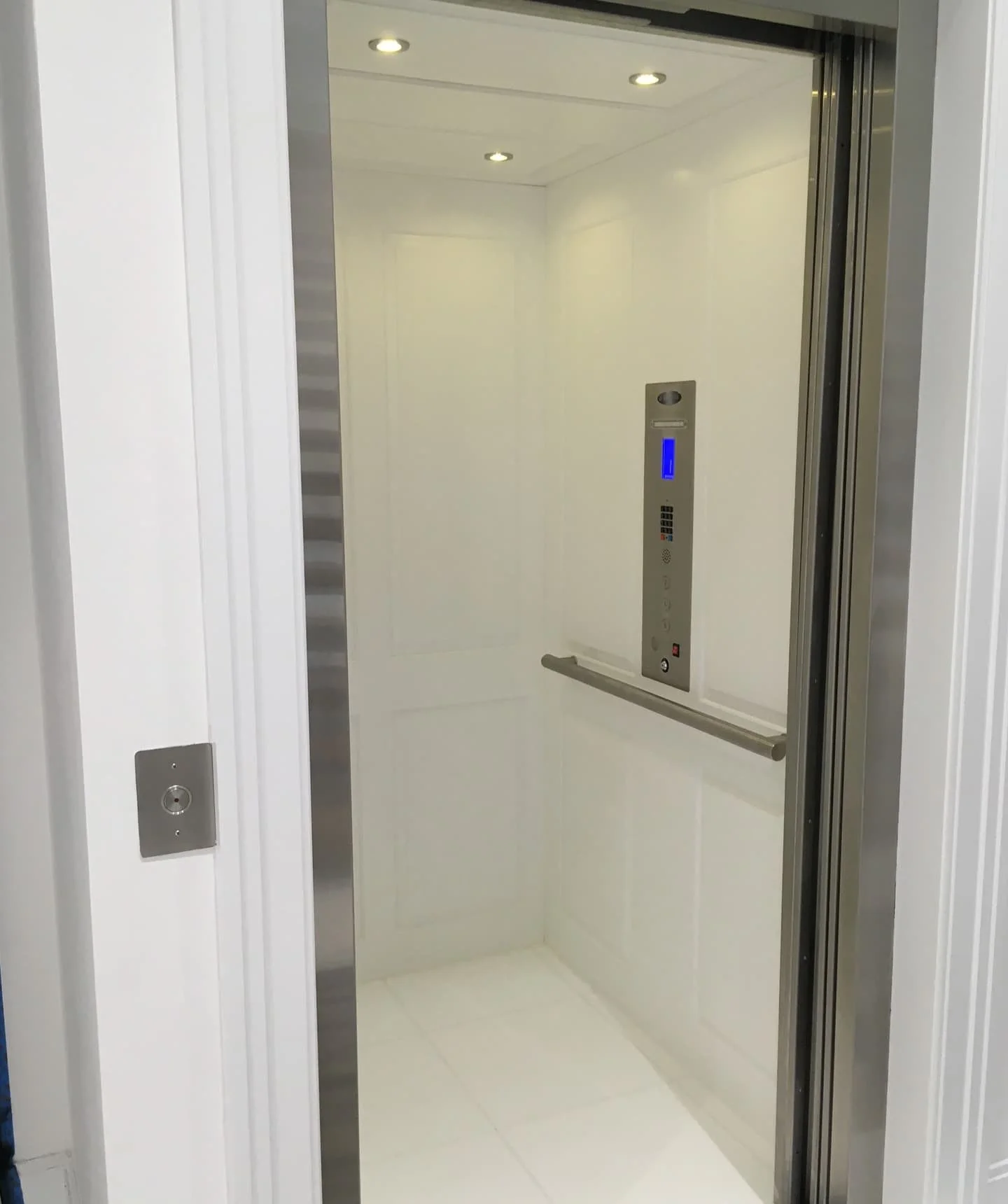

Doors and gate options: Bi-folding doors, Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, Visi-fold gate anodized bronze with bronze acrylic, Clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors (requires minimum 84" cab height).
Other options: Up to 6 stops, machine roomless controller in hoistway, telephone cabinet, alpha-numeric button marking, two-exit opening, speed upgrade to 50 fpm subject to local code, buffer springs, keyed hall call stations. -
Applications: Residential, indoors
Standard capacity: 950 lb (431kg), 1000 lb (453 kg)
Maximum travel distance: 50' (15.24 m), 60' (18.29 m) where code permits with up to 6 stops and 2 openings
Nominal speed: 40 ft/min (0.20 m/s)
Motor: 2 hp with geared roller chain and variable frequency drive
Minimum pit: 8" (203 mm) recommended, but as shallow as 6" (152 mm) is possible; 10" (254 mm) required for HD model
Minimum overhead clearance: 96" (2438 mm)
Power supply: 230 volts, single phase, 60 Hz, 20 amps, 30 amp fused disconnect box with 20 amp fuse -
Customizable to Suit Your Style
Choose from a range of finishes, doors, and cab interiors to match your home’s design. The Eclipse adapts to your aesthetic—whether you prefer hardwood, luxury MDF, or routed white panels. Optional luxury flush doors create seamless design integration for a truly modern touch. Customize cab interior, fixtures and doors here.
Key Features
Fully Automatic Operation: One touch is all it takes.
Battery-Powered Emergency Lowering: Stay safe, even during power outages.
Modular Rail System: Simplifies installation and maintenance.
Safety First: Equipped with emergency stop switch, motorized braking, and lockable control panel.
Elevate your experience. Discover comfort and convenience with every ride.
Built for Safety and Reliability
Safety is built into every part of the Eclipse. From motorized braking systems to lockable control panels, this elevator goes beyond compliance to bring you peace of mind. Emergency lighting and manual lowering systems ensure that your elevator is always ready—even when the unexpected happens.
Eclipse at a Glance
Capacity: 950 lbs (1000 lbs with HD version)
Maximum Travel: 50 ft (up to 60 ft where permitted)
Nominal Speed: 40 ft/min
Motor: 2 hp geared chain drive
Stops: Up to 6
Power Supply: 230V, single phase
