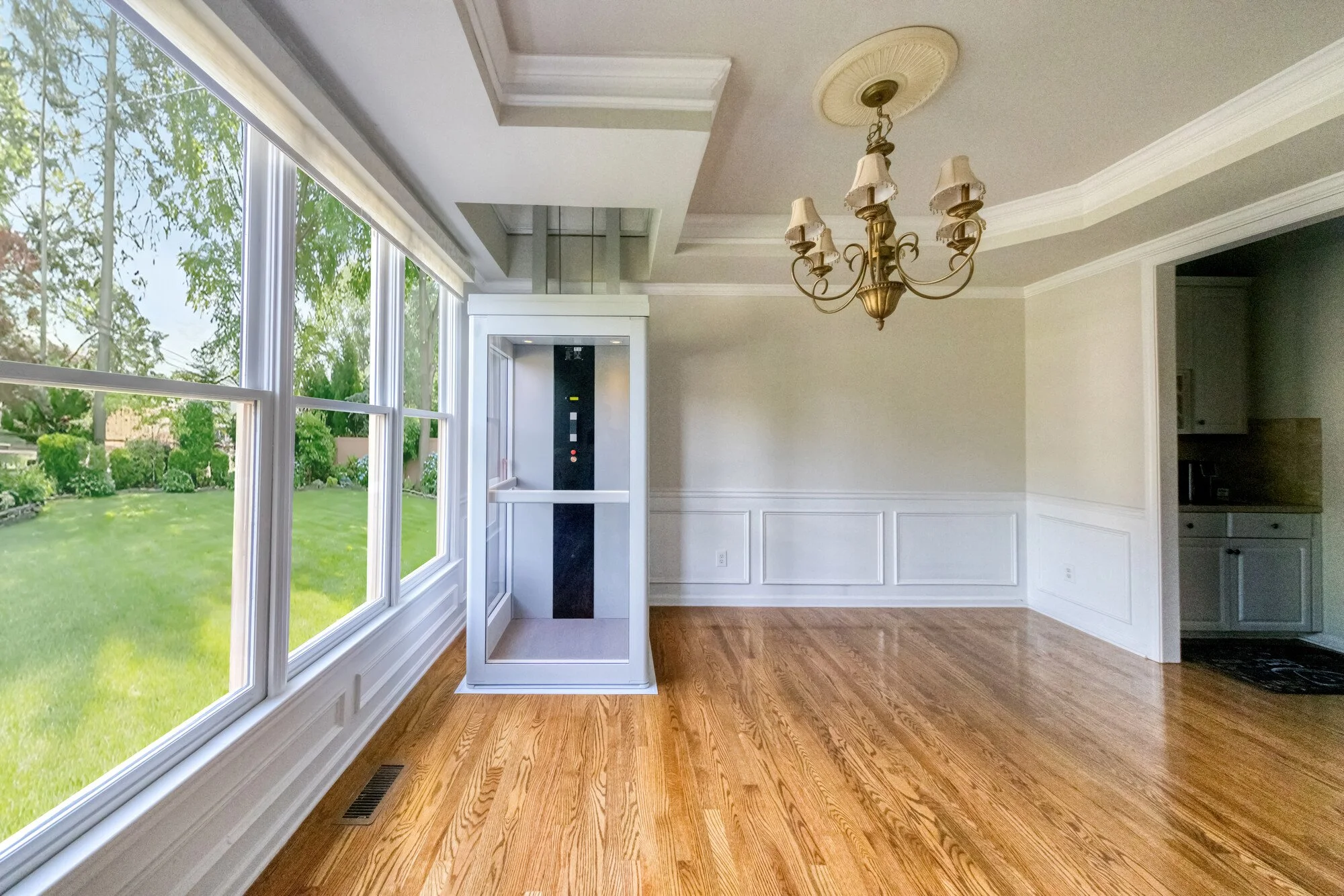

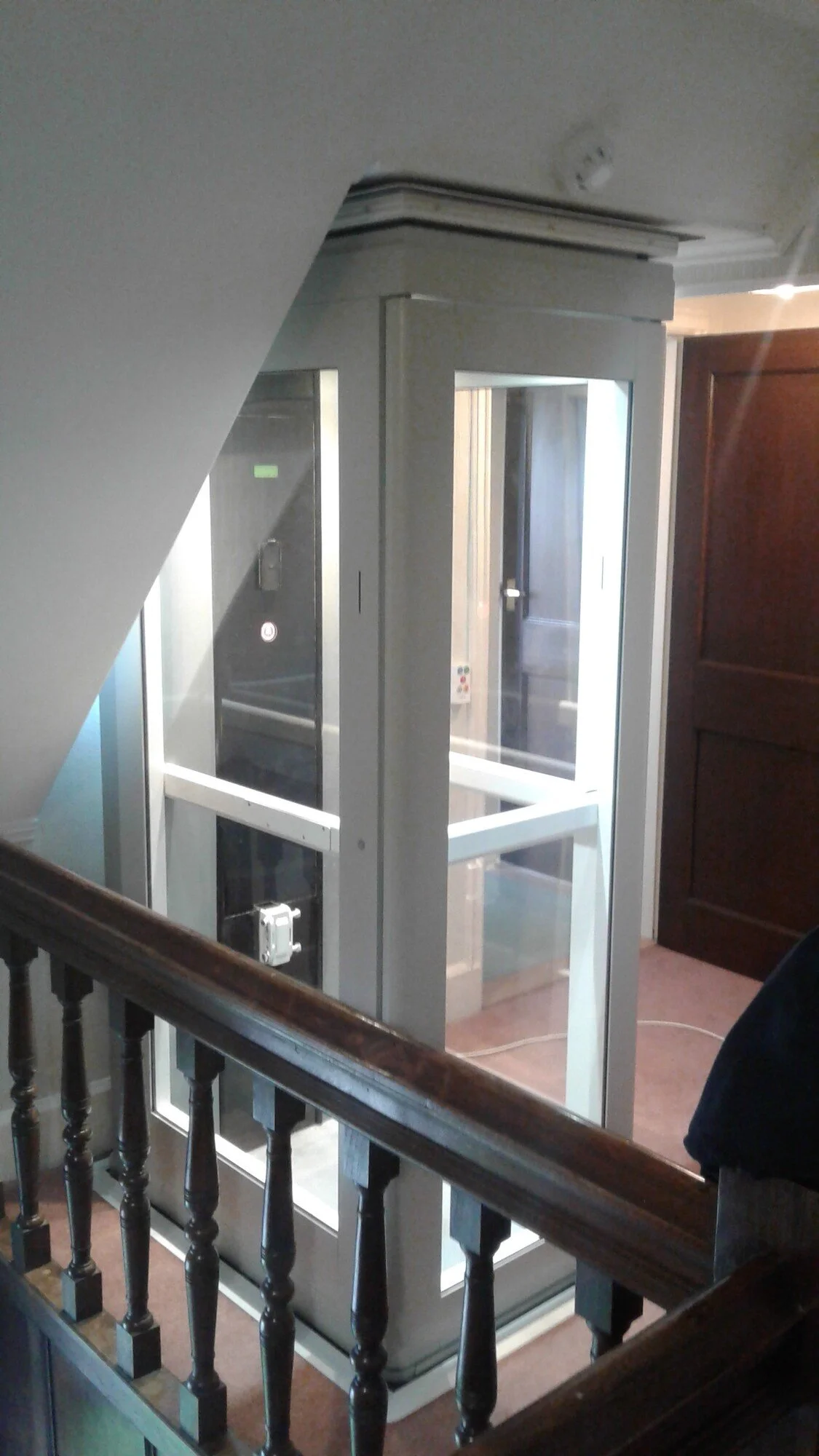

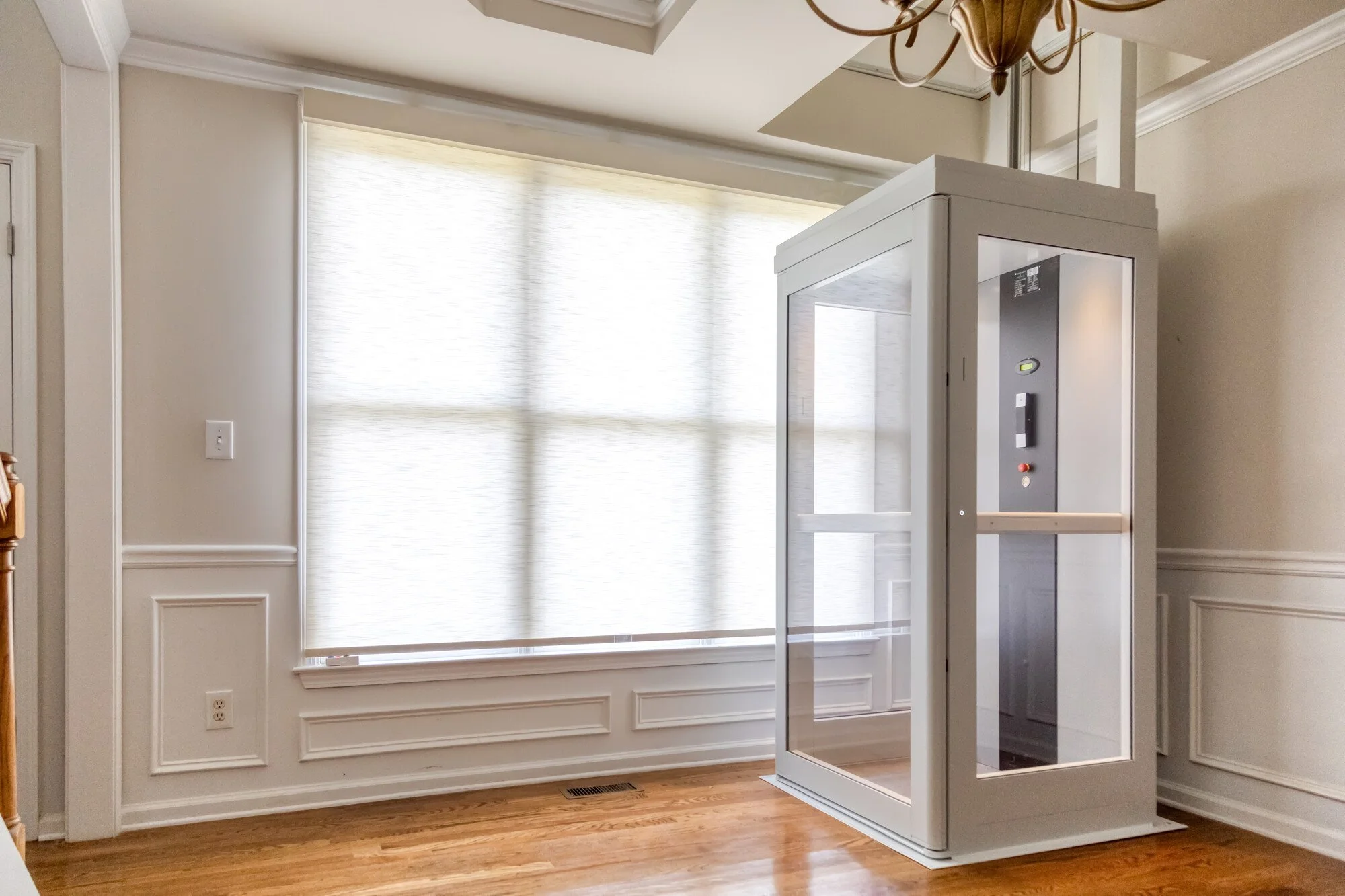

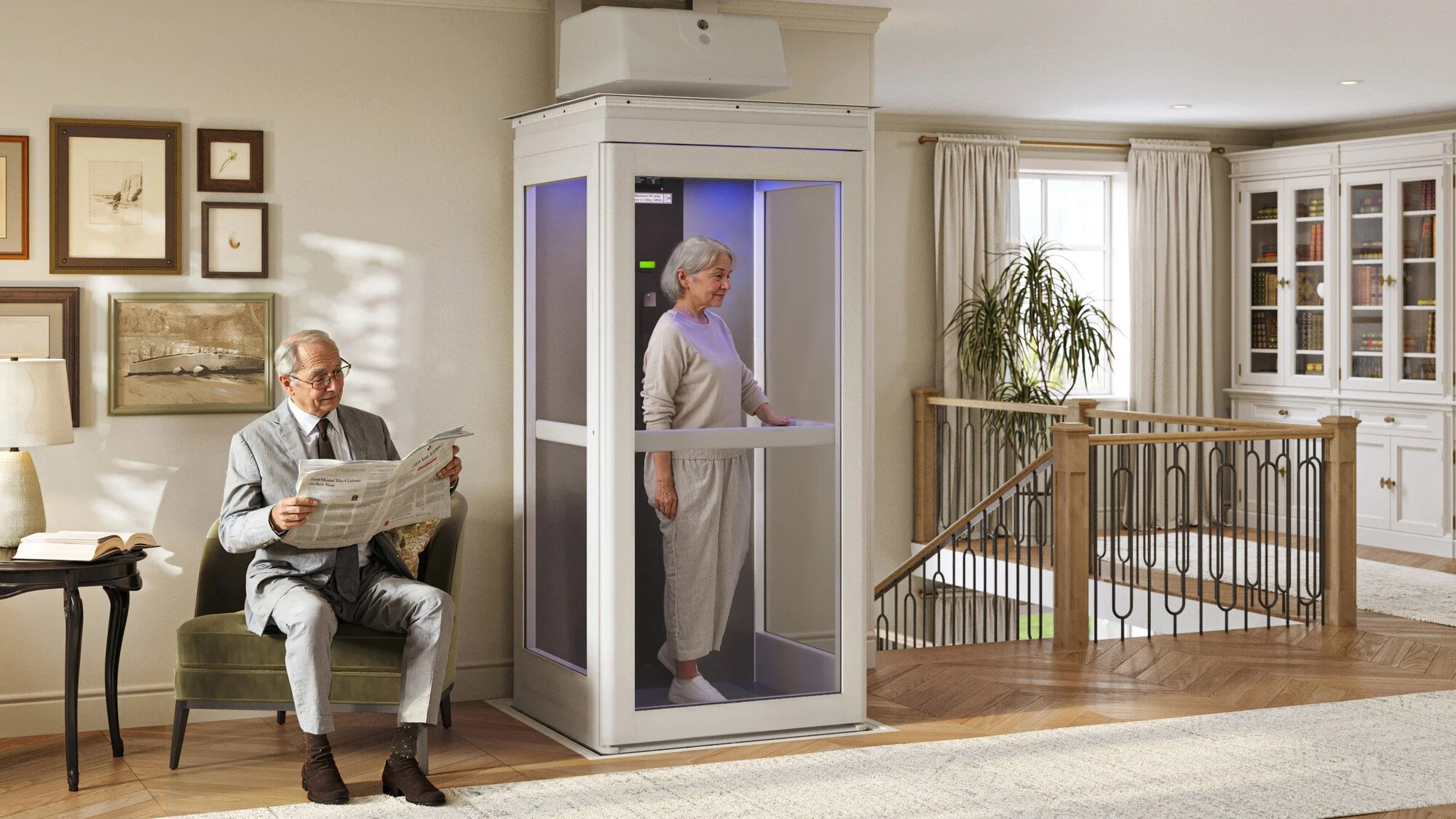

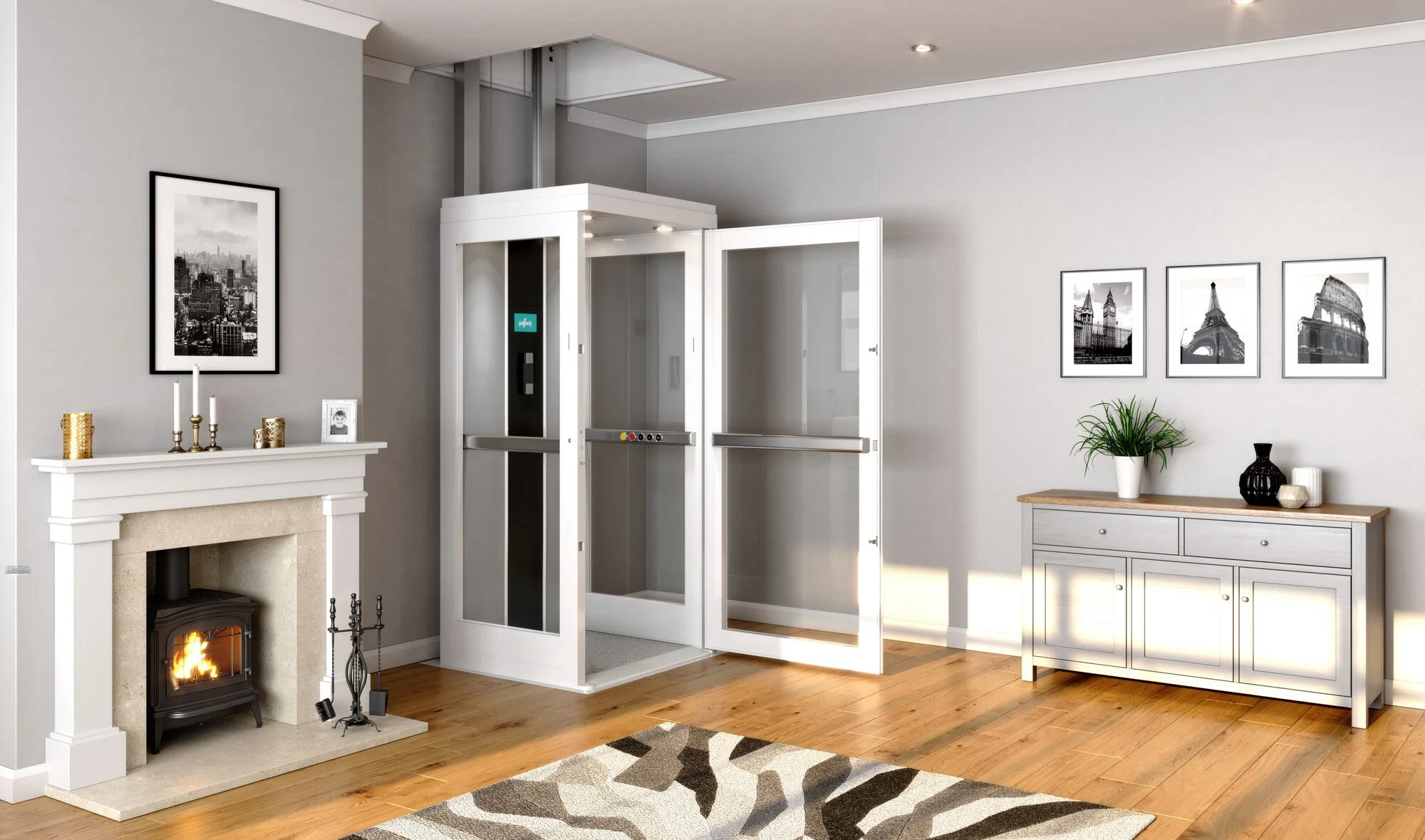

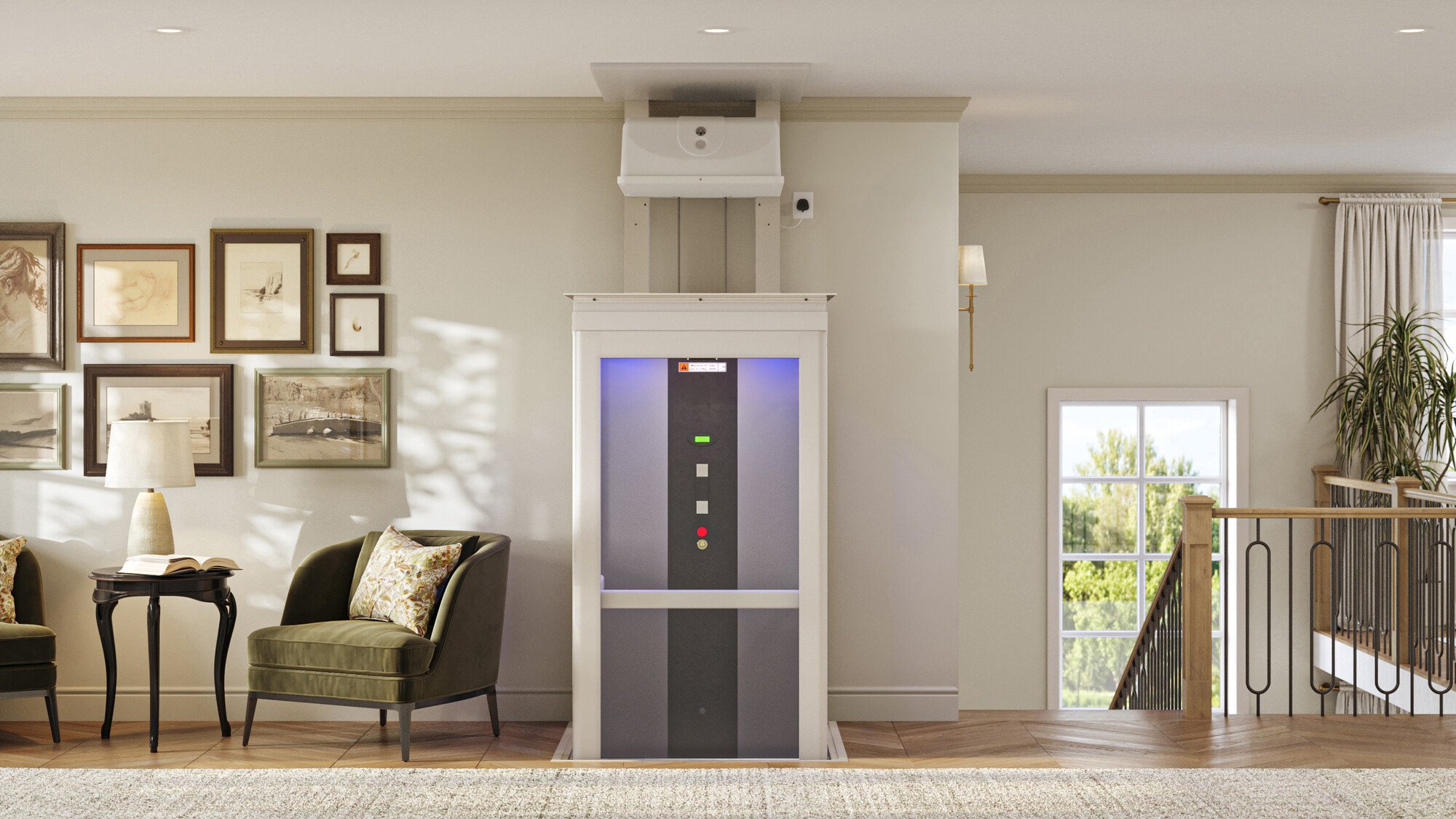

Pollock Residential Elevator

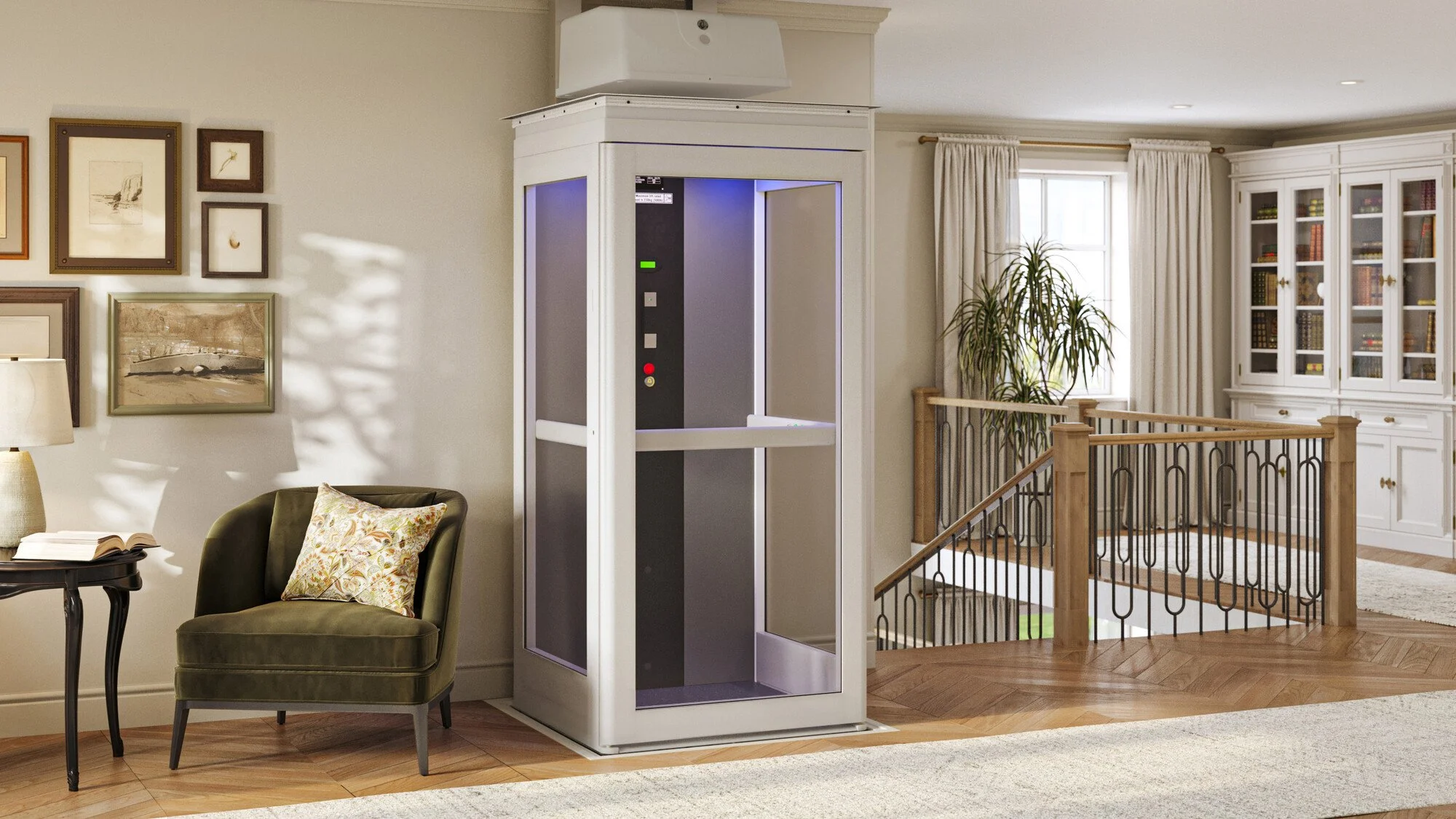

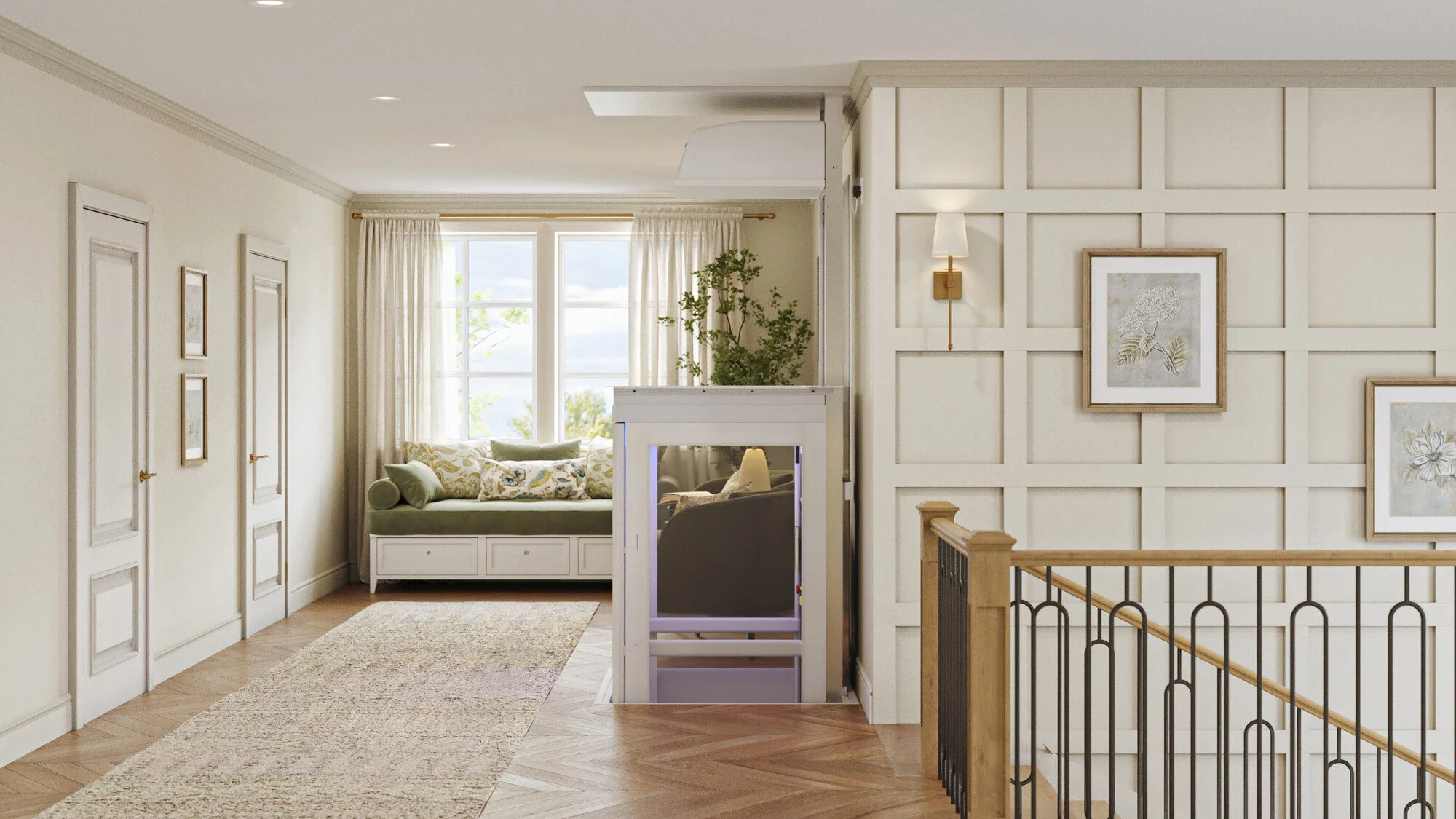

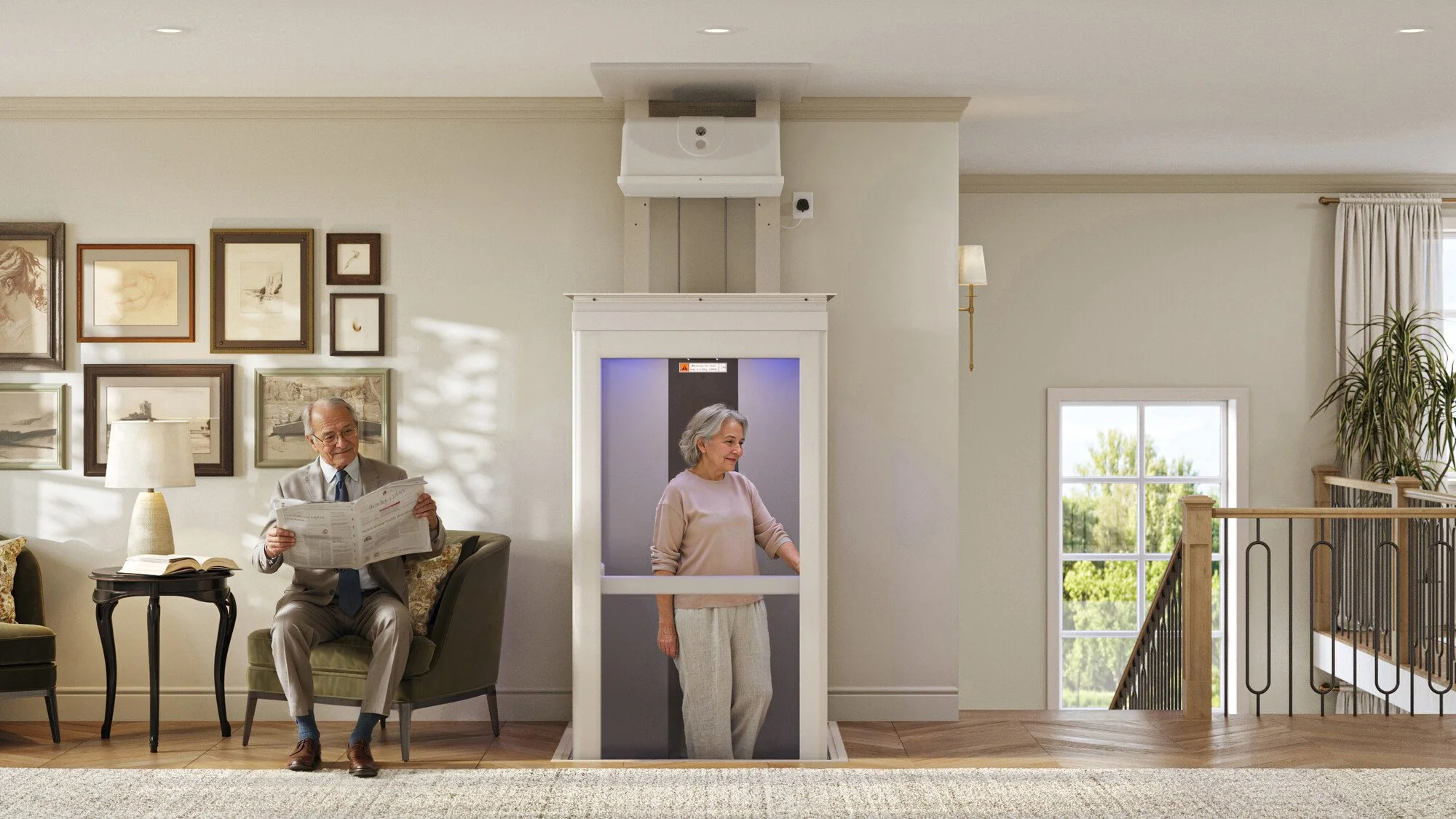

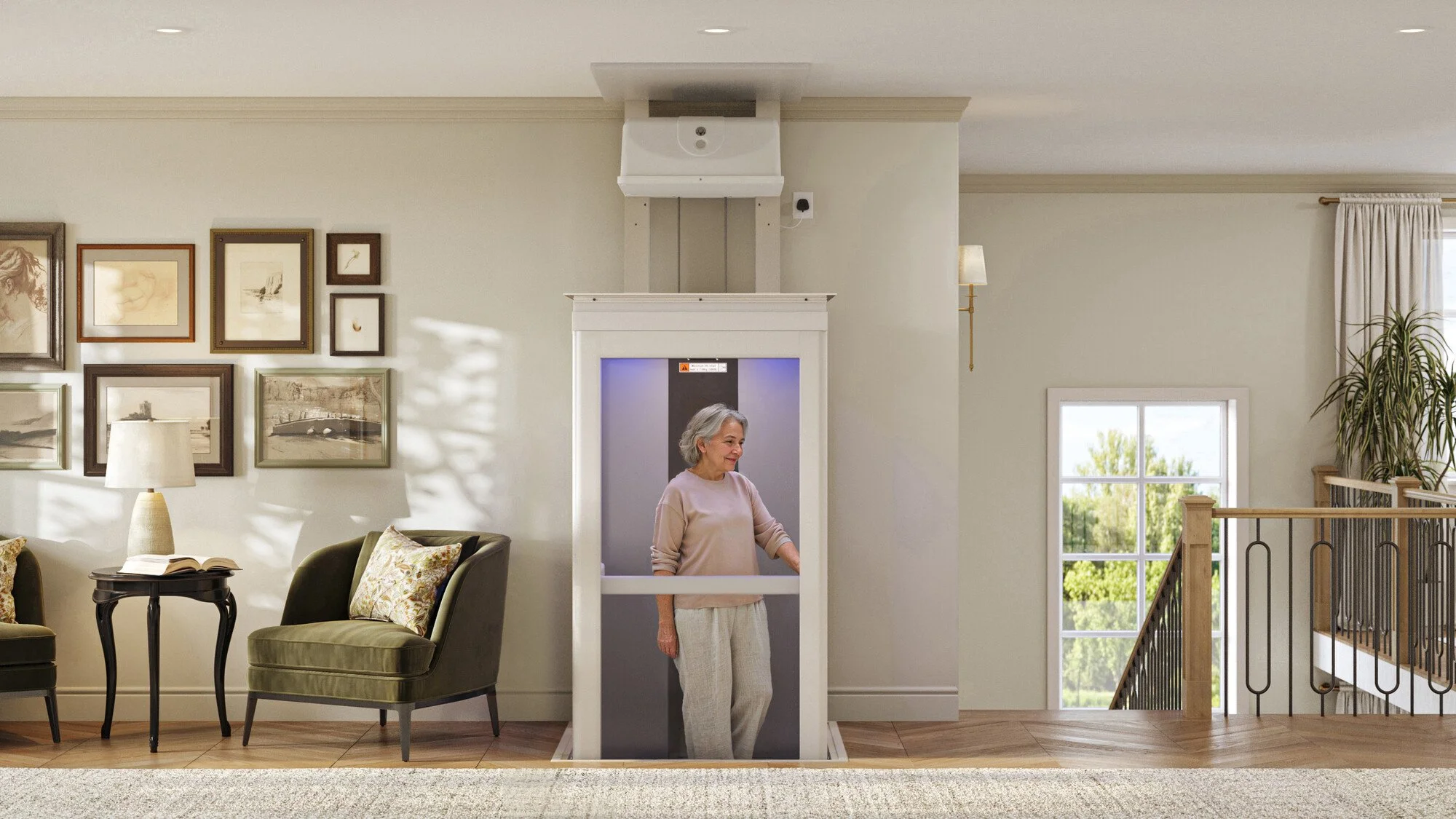

• A modern shaftless home elevator designed for style, comfort, and simplicity—the Pollock combines sleek European engineering with thoughtful functionality.

• Its space-saving design eliminates the need for a hoistway or machine room, using a discreet dual-rail system that installs cleanly along the wall with minimal construction required.

• Available in multiple sizes—including compact, two-person, and full wheelchair-accessible models—with a weight capacity of up to 500 lbs.

• Ideal for travel between two floors, with a maximum travel height of approximately 14 feet, depending on your home’s configuration.

• Flexible cabin orientation options allow for same-side or opposite-side entry and exit to suit your space and accessibility needs.

• Customize your cabin with modern finishes, mood lighting, and optional features like a tip-up seat, power door, or digital display.

• *Note: Installation requirements and available features may vary based on your local building codes. Contact us for a personalized evaluation.

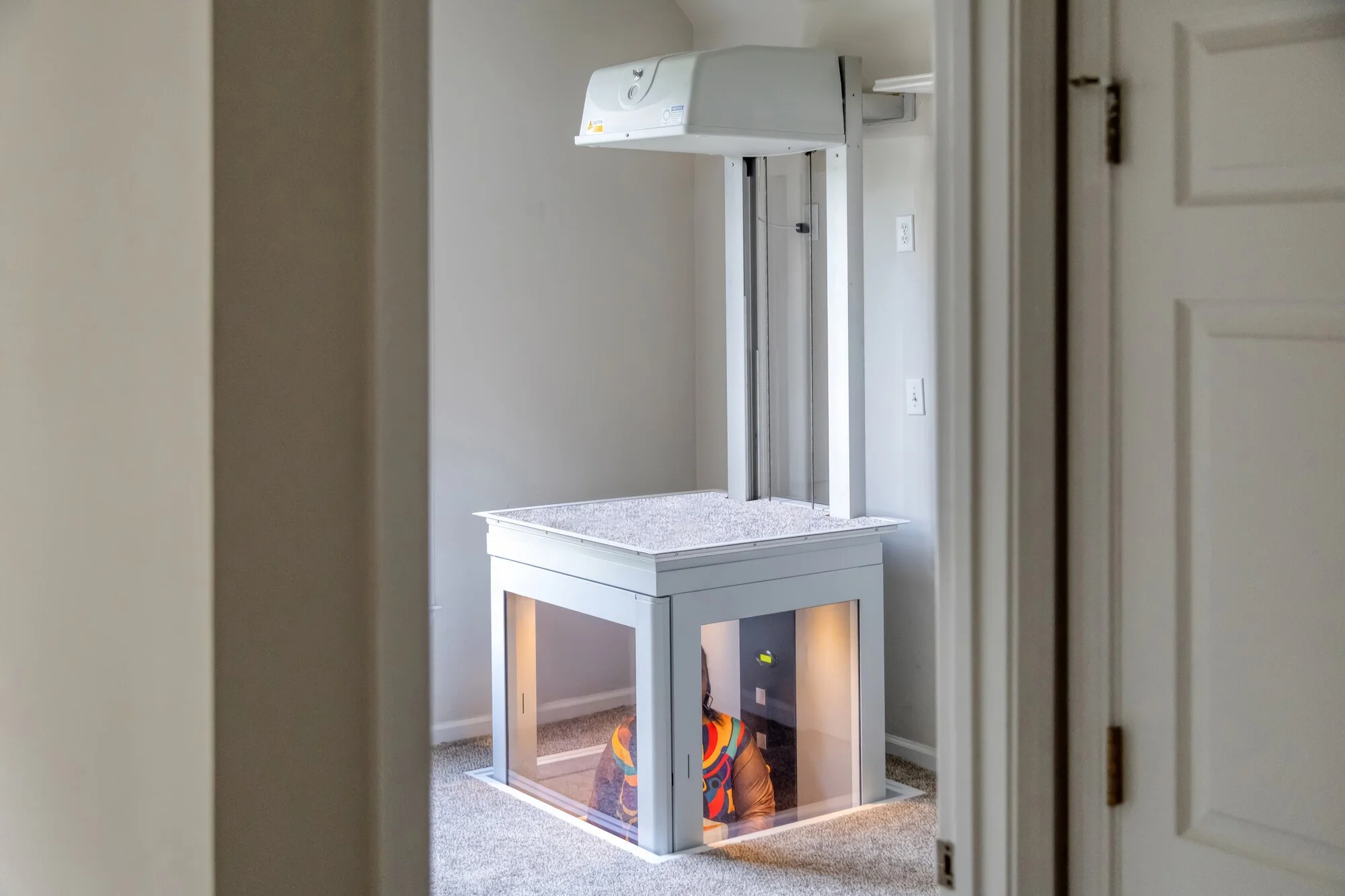

Shaftless Design

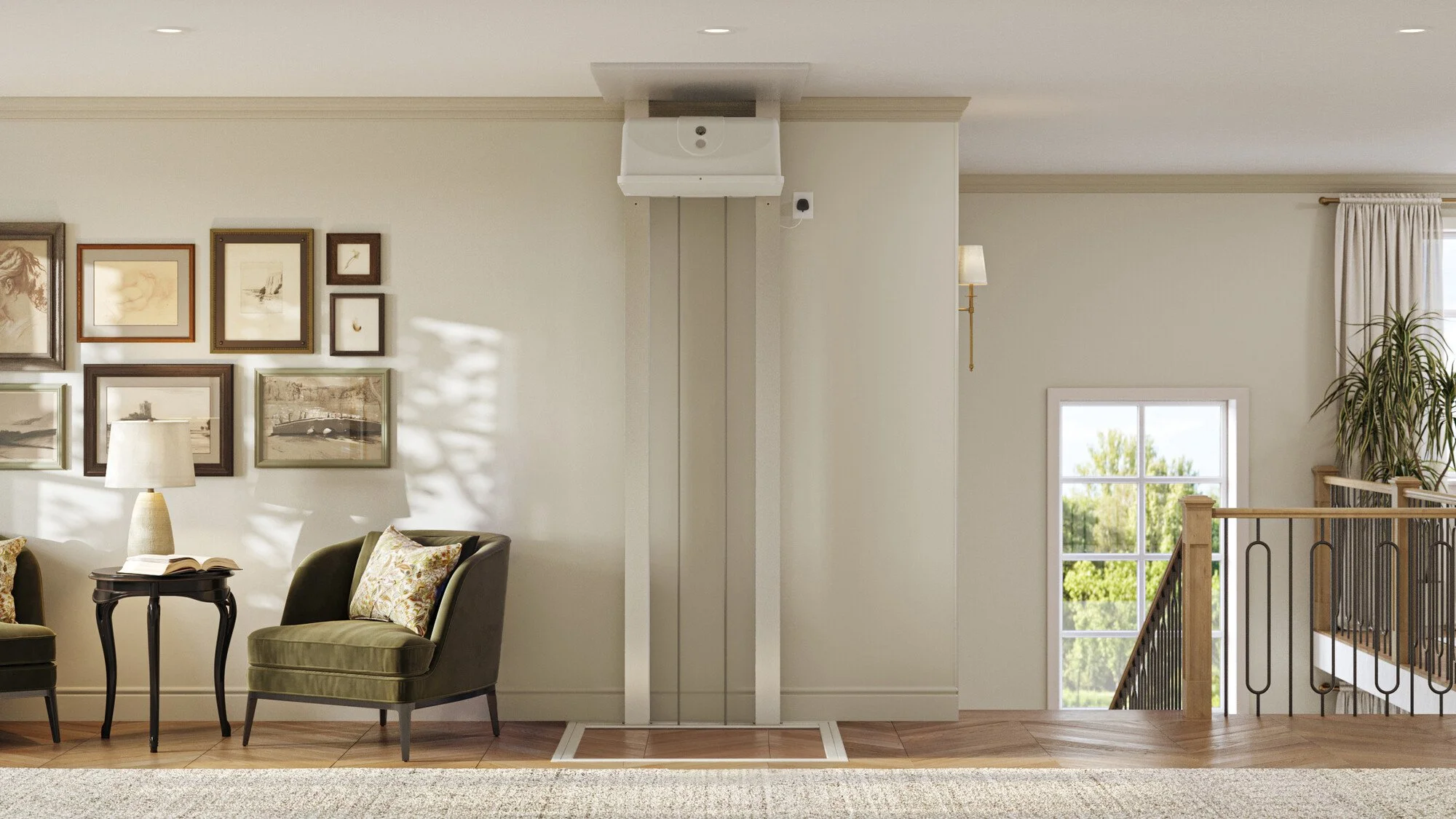

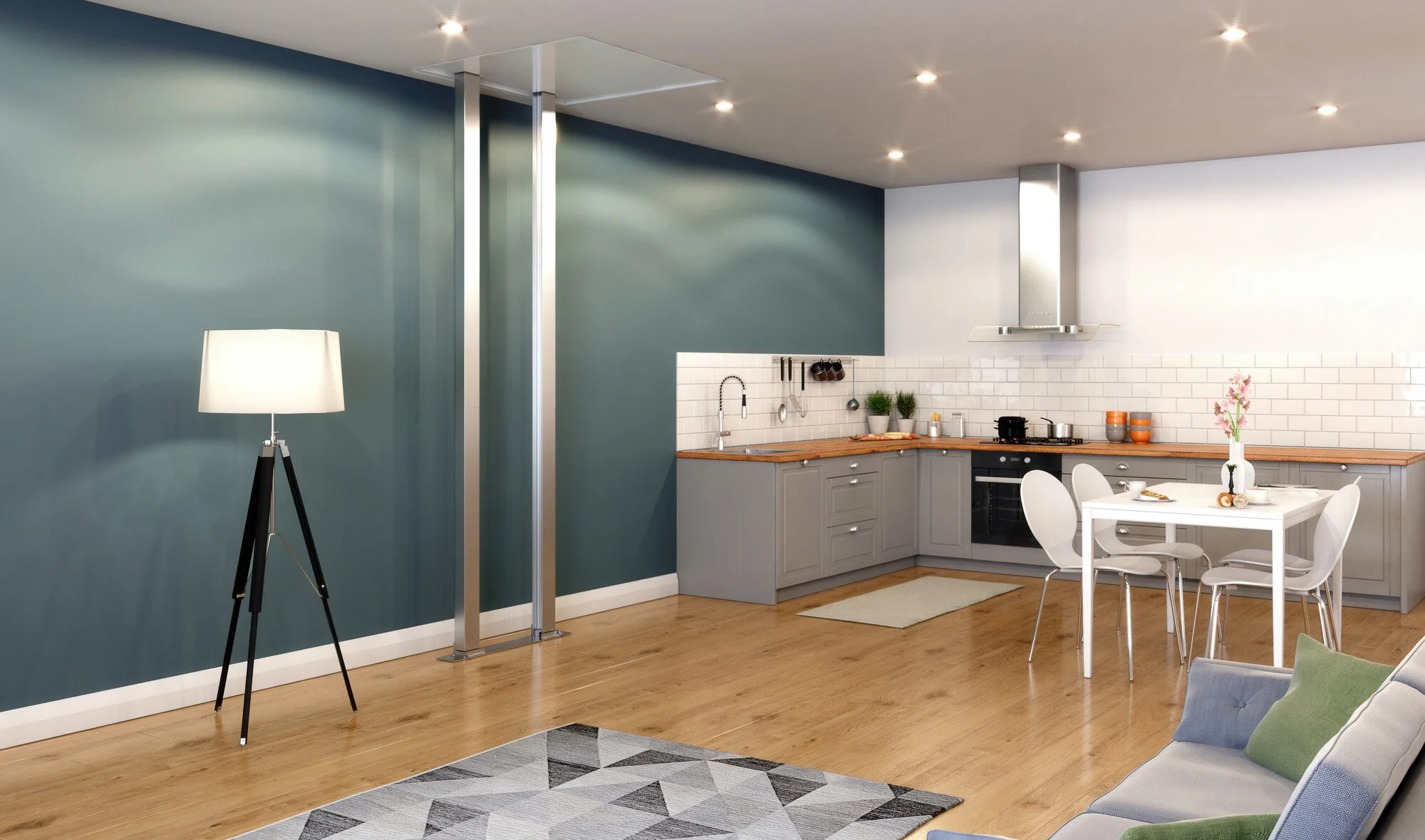

No machine room or hoistway required—Pollock’s slim-profile rail system installs along the wall, making it perfect for homes where space is at a premium.

Quiet Traction Drive
Engineered with a soft-start, soft-stop rope suspension drive for smooth and whisper-quiet operation. Includes slack cable detection and built-in overspeed safety brake for added peace of mind.

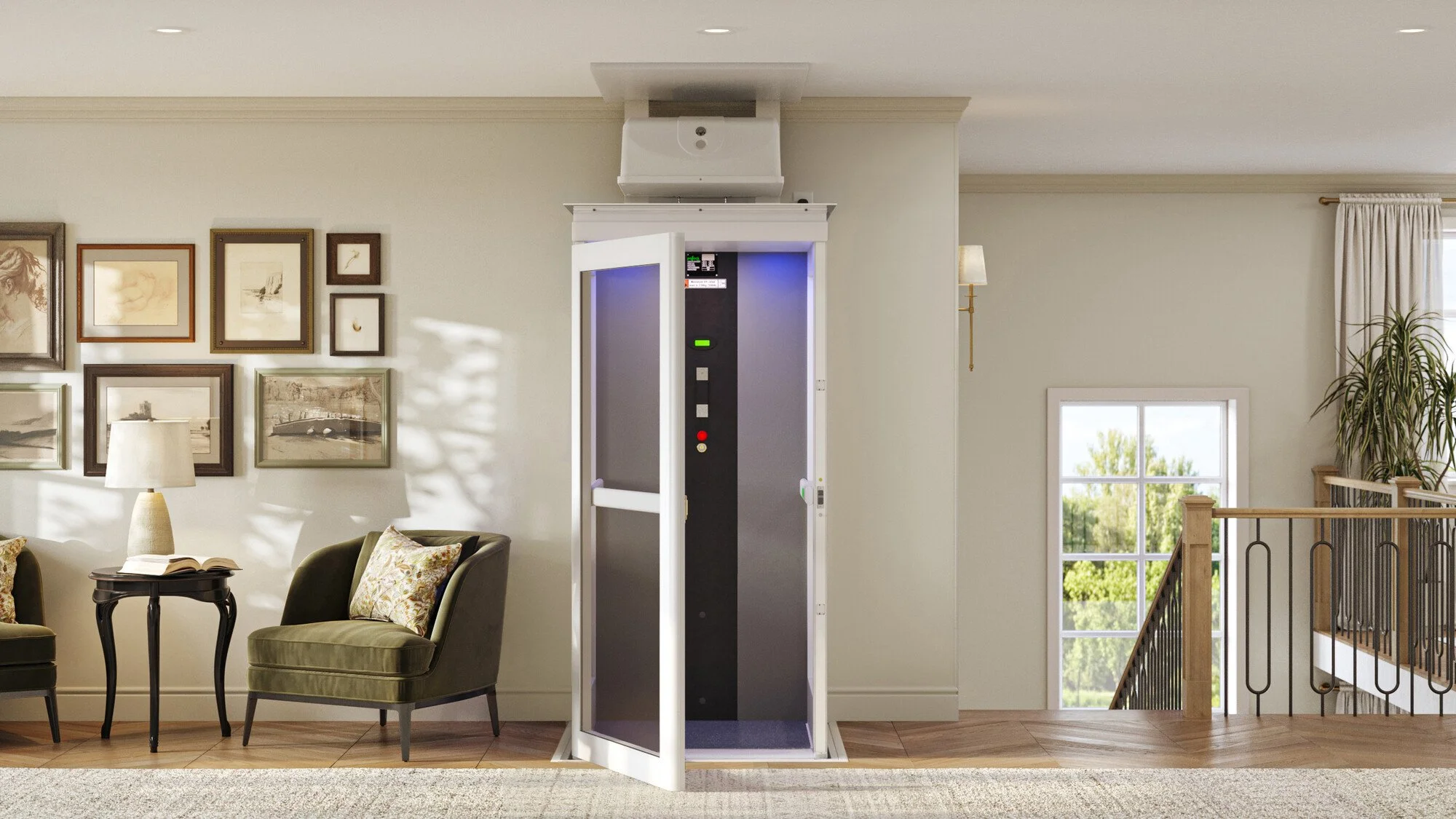

Discreet Entryway
Innovative hideaway door system maximizes usable space, offering a clean look and easy access without bulky swing gates.

Standard Features

• Low-profile entry ramp

• LED ambient lighting with automatic cab on/off

• Dual wireless remotes with onboard diagnostic display

• Anti-slip vinyl flooring in a choice of finishes

• Constant-pressure controls for safe and intuitive use

• Battery-powered emergency lowering for safe descent during power outages

• Emergency stop switch and integrated safety tray sensors

• Onboard telephone and in-use indicator lighting

Finish Options
Available in grey, oak, or marble-effect vinyl flooring, with customizable RAL color options and interior trim upgrades. Choose from large clear viewing panels or more private panel configurations to suit your space and style.

Power Requirements
Runs on a standard 115V, 20A household outlet—no special wiring needed.

Warranty
Includes a 2-year limited warranty on parts and components. Full warranty terms available upon request.

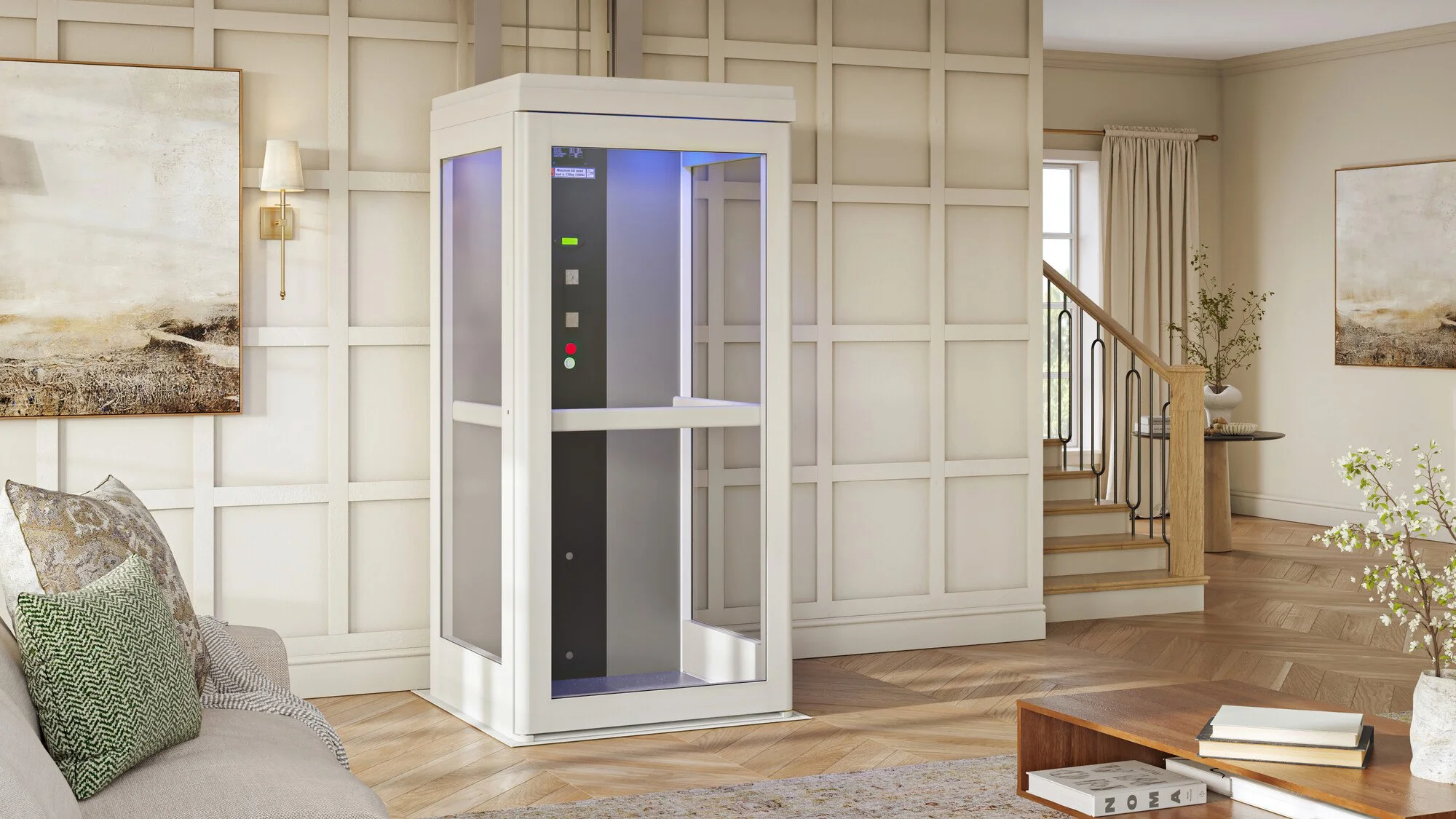

Cab Sizes & Layout Options
Pollock offers three standard cab sizes to accommodate different home layouts and accessibility needs:

• Compact: Approx. 31″ x 43″

• Medium: Approx. 43″ x 43″

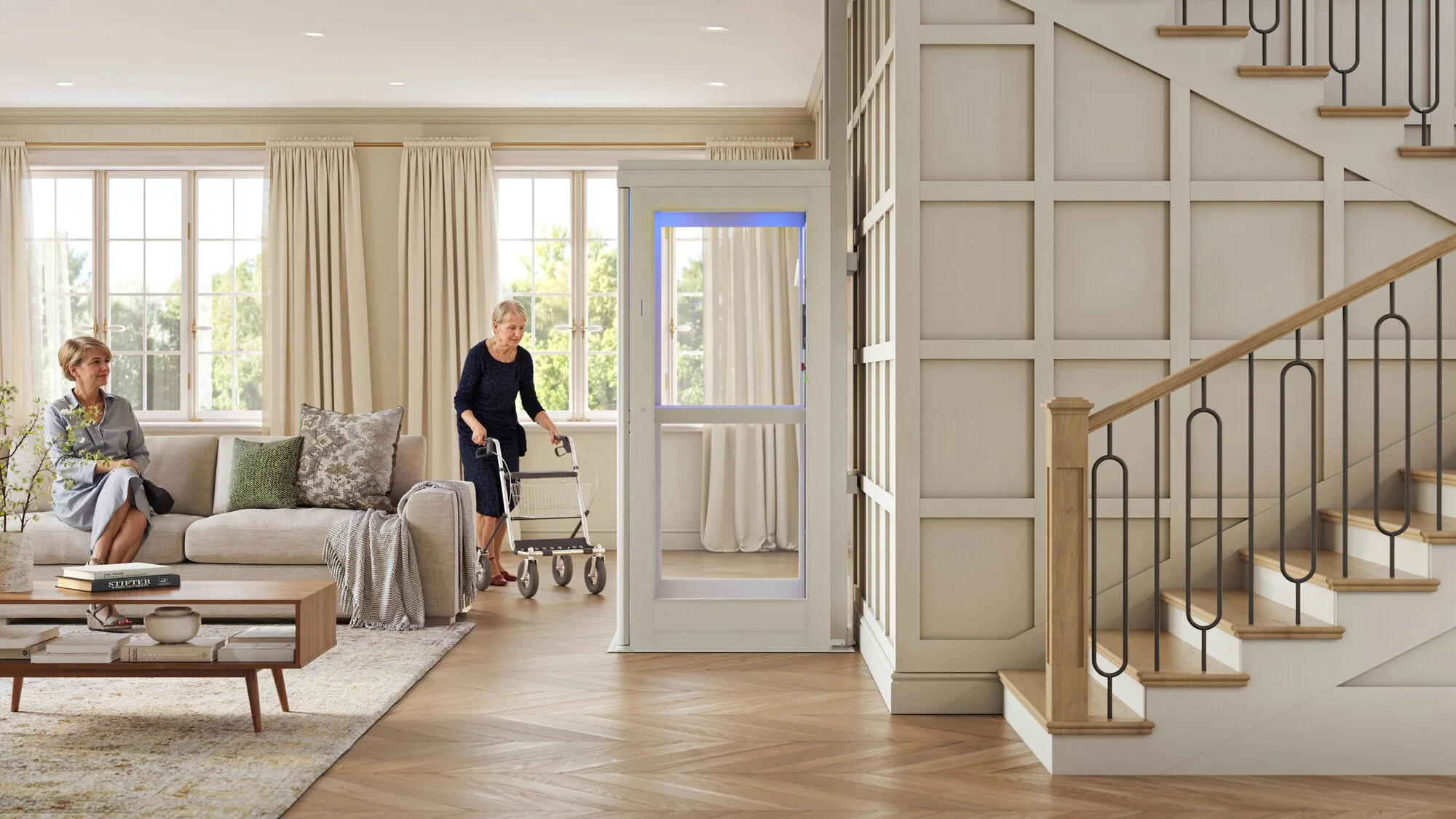

• Wheelchair-Accessible: Approx. 43″ x 62″

Each model is designed to maximize space efficiency while maintaining a comfortable and functional interior. Custom sizing may be available upon request, subject to site evaluation and local code.

Cab Height Options
Standard cab height is approximately 80", with optional upgrades to 84" or 96" depending on configuration and available clearance.

Finish Options
Tailor your elevator to your home’s aesthetic with a range of premium finishes:

• Flooring: Choose from grey anti-slip vinyl, marble effect, or oak effect flooring.

• Interior Panels: RAL color-matched powder-coated panels or custom decorative options.

• Lighting: LED mood lighting creates a warm, ambient glow inside the cab.

• Seating & Accessories: Add a fold-down seat, handrails, or integrated control options for added convenience and accessibility.

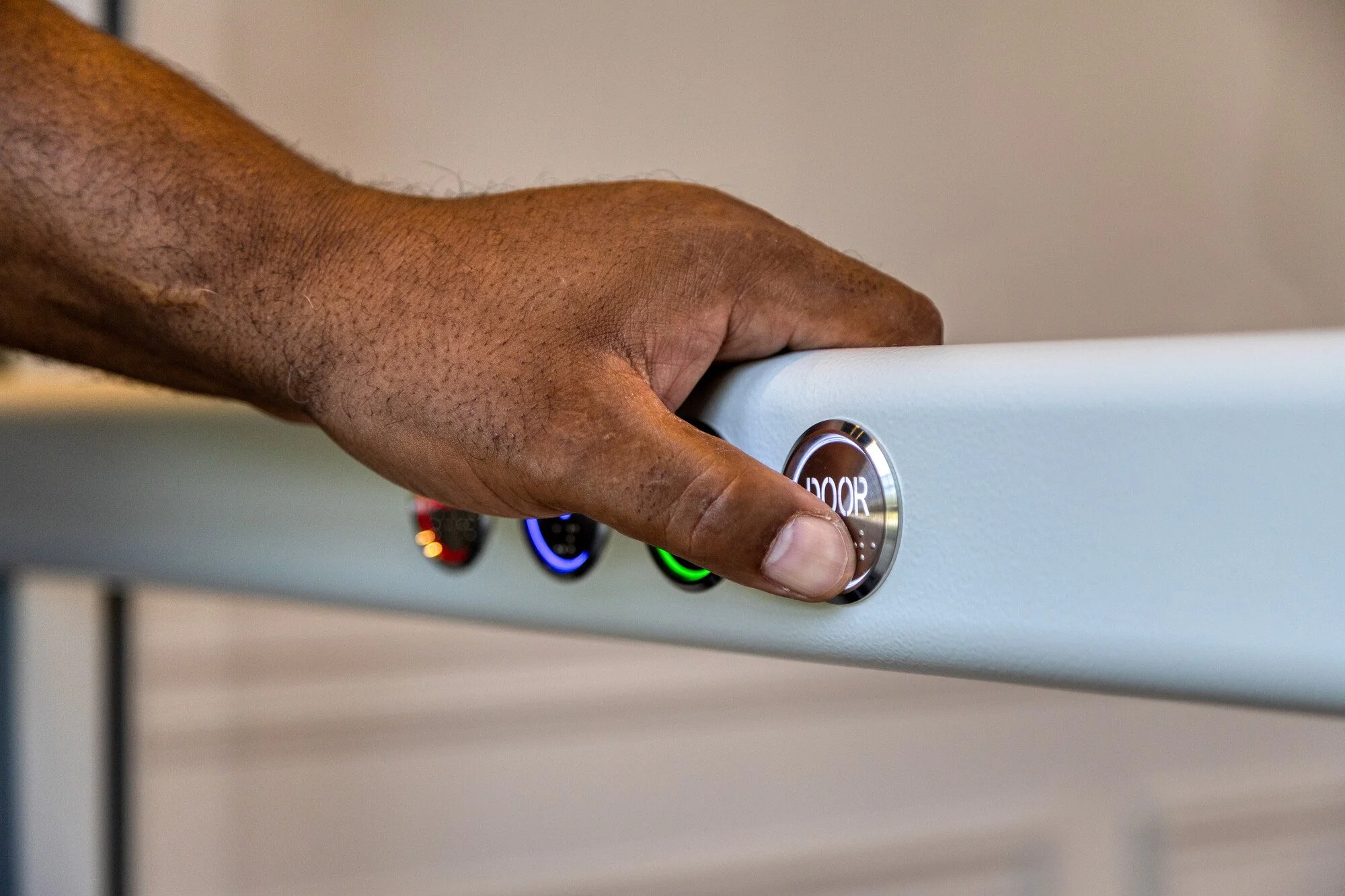

Control & Fixture Options

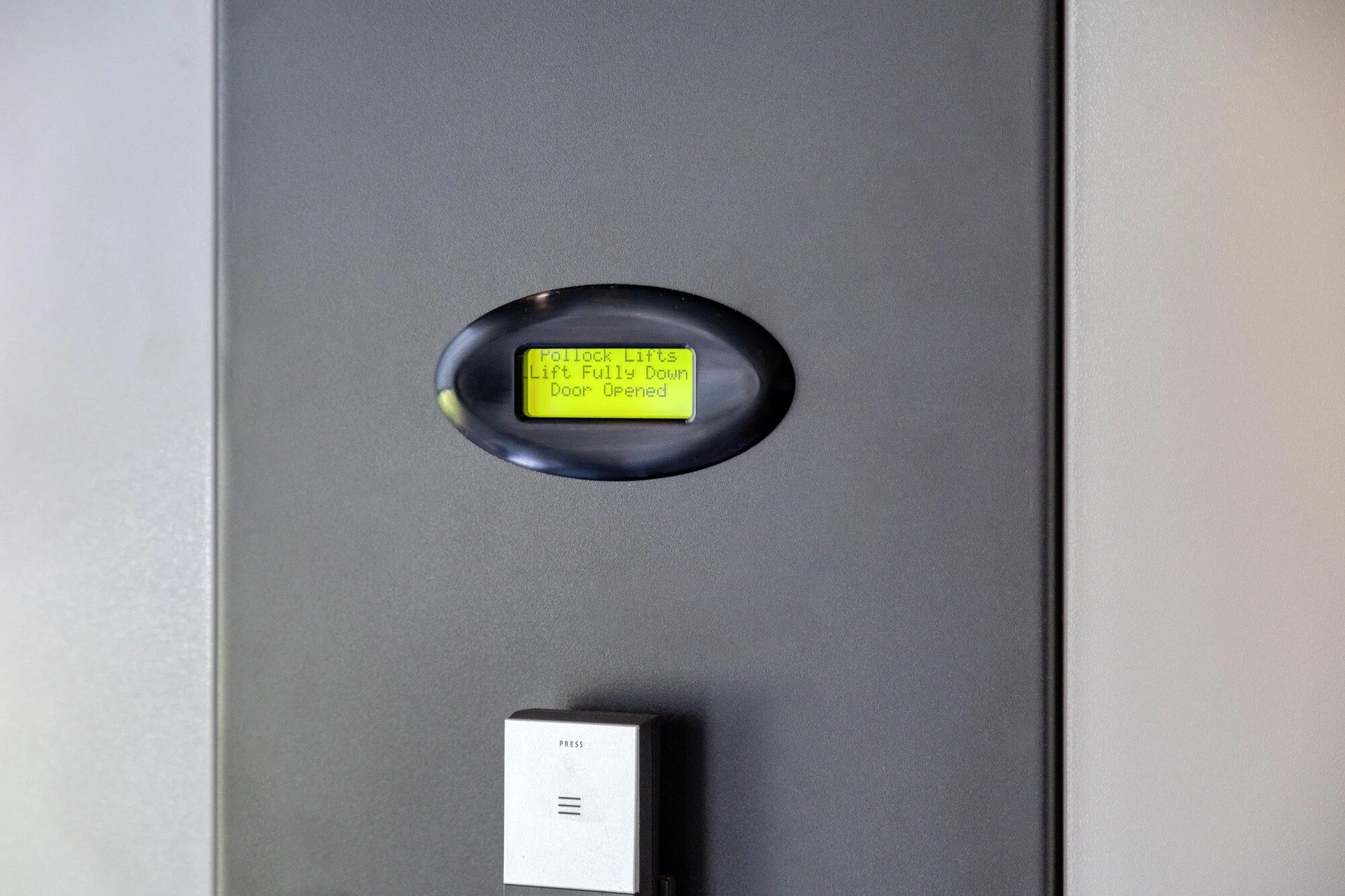

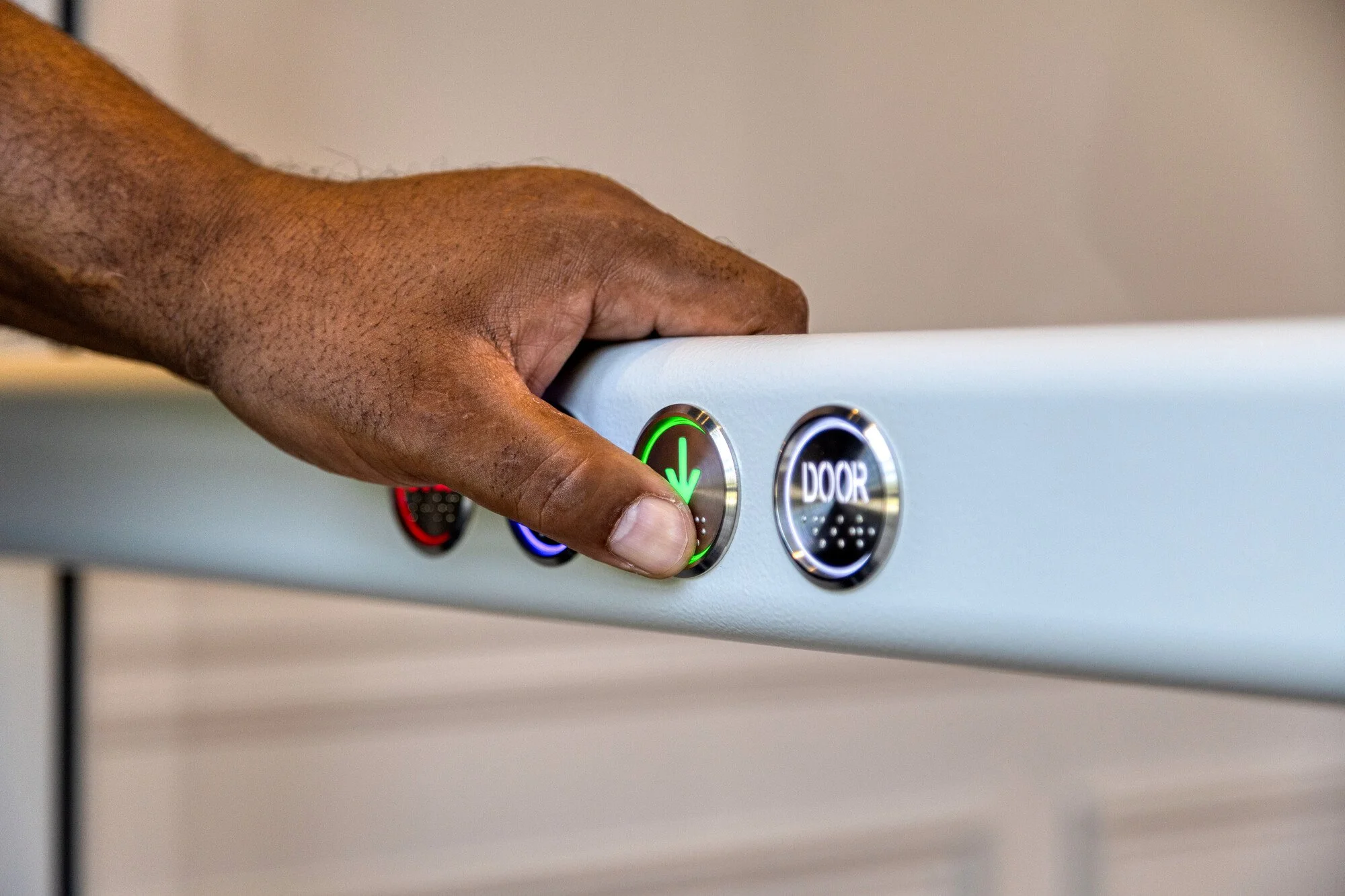

• Control Panel: Sleek in-cab operating panel with digital diagnostic display

• Wireless Remotes: Two wireless remotes standard, with call/send functionality

• Finish Options: Fixtures available in stainless steel, matte black, or architectural white

• Custom Naming & Indicators: Optional alphanumeric labeling or landing identifiers at time of order

Door & Gate Options

• Power Door Operators: Available for hands-free operation

• Panel-Gate Systems: Choose from clear anodized aluminum with acrylic inserts or a more private bronze acrylic look

• Low-Profile Entry: Shallow threshold design eliminates the need for a pit and maintains a clean, low-profile aesthetic

Other Available Upgrades

• Up to 2 stops (standard configuration)

• Emergency communication system with phone cabinet

• Battery-powered emergency lowering system

• Diagnostic trip counter with service reminders

• Keyed hall stations for added security

• Custom paint or vinyl-wrapped finishes to match existing décor

Ideal Use
Designed exclusively for residential indoor applications, the Pollock Residential Elevator brings comfort, safety, and sleek European design into the heart of your home.

Standard Capacity
Supports up to 500 lbs (230 kg)—suitable for one or two passengers, light mobility equipment, or personal items.

Travel Distance
Engineered for two-stop travel with a maximum rise of approximately 14 feet, making it perfect for most multi-level homes and retrofits.

Travel Speed
Nominal travel speed of approximately 16 feet per minute—providing a smooth and steady ride from floor to floor.

Drive System
Whisper-quiet rope-suspension traction drive with soft start/stop motion for enhanced ride quality and long-term reliability.

Construction Requirements

• No Pit Required – A shallow ramp (less than 1 inch) allows for easy access without major floor modifications

• No Hoistway Needed – Shaftless dual-rail design installs directly against a wall with minimal framing

• Ceiling Clearance – Standard ceiling height required is just 96 inches at the upper level

Power Requirements
Operates on a standard 115V, 20 Amp residential electrical circuit—no specialized wiring or high-voltage service required.

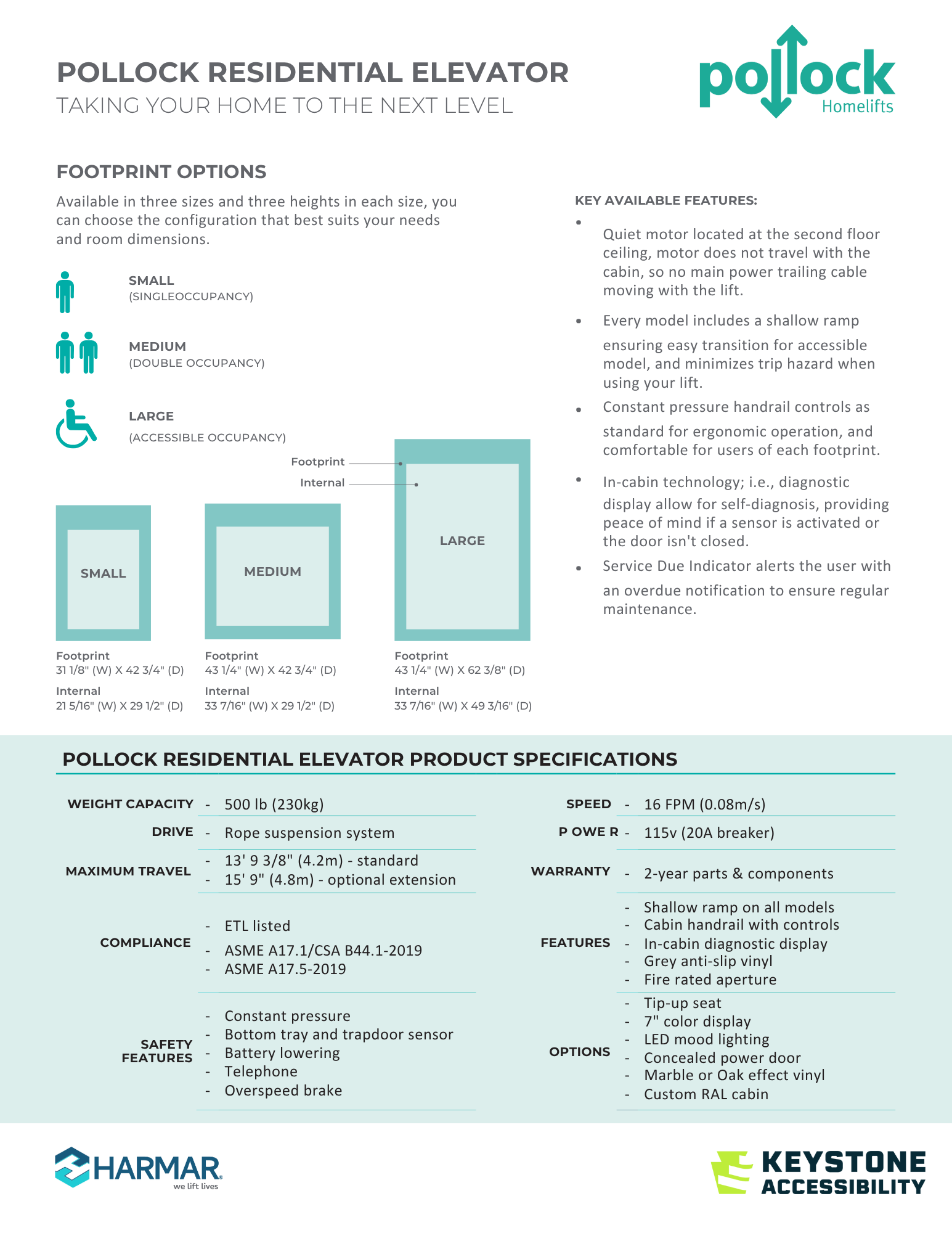

Pollock Brochure
