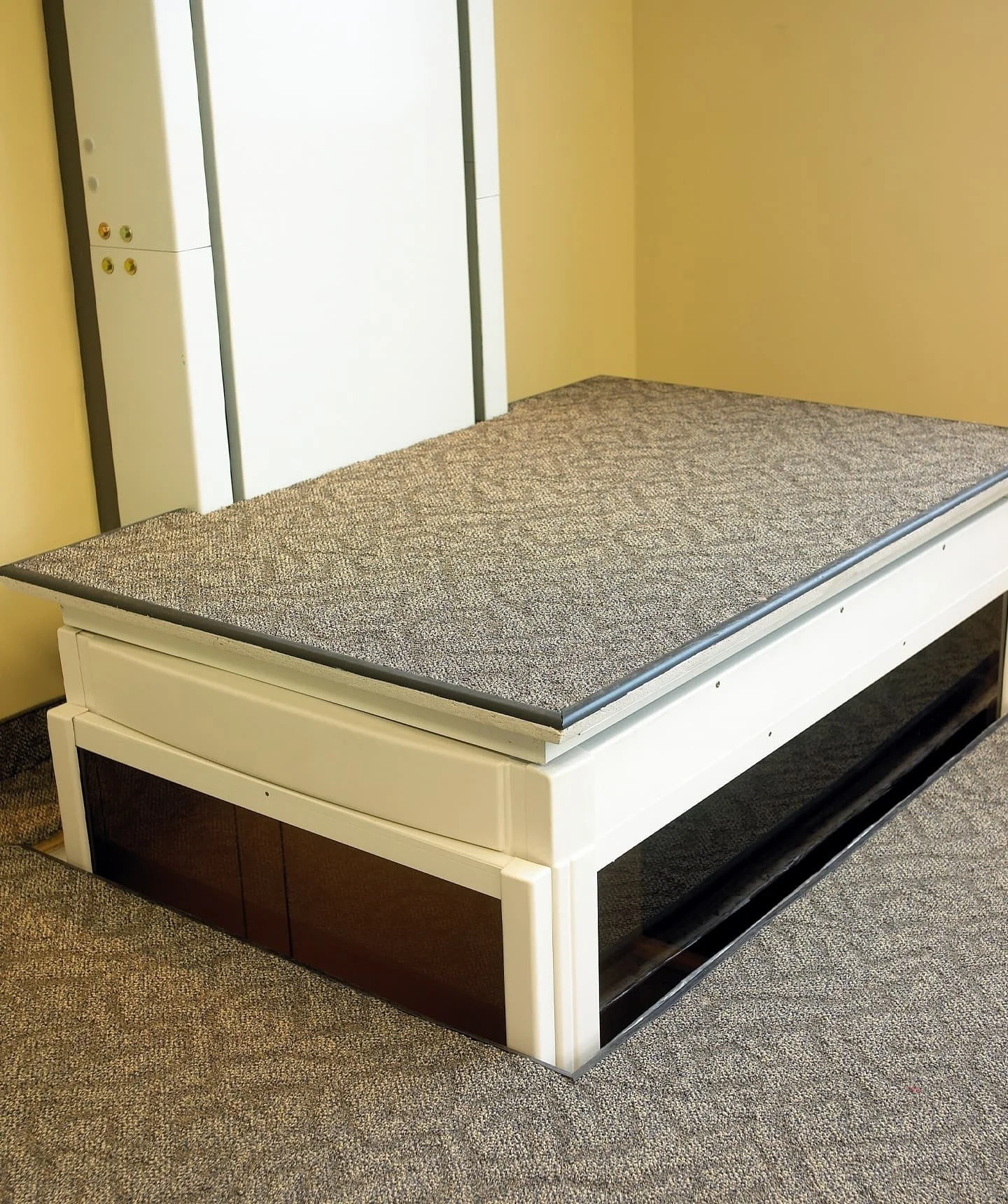

Telecab & Telecab17 Home Lifts
Space-Saving Accessibility, Seamless Living
The Telecab and Telecab17 offer a breakthrough in home mobility with their through-the-floor design. These lifts deliver easy access between two floors without the need for a traditional hoistway, minimizing construction and maximizing space. With their compact design, both models blend effortlessly into any home environment, providing reliability and convenience in every lift.
Innovative Design That Fits Any Home
Forget complex renovations—Telecab lifts travel smoothly through a simple floor cut-out, making them ideal for homes where a full elevator installation isn't feasible. The drive system is housed in an enclosed tower, keeping mechanical components discreet and out of sight.
Telecab: Perfect for standard accessibility needs, with a 500 lb capacity.
Telecab17: Designed for heavier loads, offering an 845 lb capacity for larger mobility devices.
Simple, sleek, and effective. Move through your home with ease using the Telecab series.
Savaria Telecab and Telecab17
-
Space-saving through-the-floor accessibility lift, built on the same drive system as the popular and robust Savaria V-1504 wheelchair lift
Serves 2 stops with up to 23' of travel; capacity of 500 lb to accommodate a passenger with mobility device (for 845 lb capacity, see the Telecab17 home lift)
Non skid platform with gentle slope threshold for easy access of mobility device
4 cab sizes to choose from; custom sizes also available
Operates by continuous pressure buttons; sensor to stop the unit if it detects an obstruction in either direction
Installation requires minimal construction; no hoistway required
Enclosed drive tower keeps mechanical components safe and out of sight
Full height flush door with grip handles, interior lighting inside 78" (1981mm) height cab
-
Innovative design: All-in-one drive tower and enclosed cab means no hoistway is needed and unit travels through a floor cut-out.
No hoistway or pit required: Minimal construction makes the Telecab easier to install than a traditional home elevator – only a support wall and floor cutout are required.
Modern, neutral-toned design: The unit blends into your home décor.
Reliable, enclosed drive system: Dependable and safe operation in your home.
Other standard features: Continuous pressure buttons to operate the unit, telephone, two interior ceiling lights, two-stops, cab size - 30" x 46", 78" tall (76.2 cm x 116.8 cm, 198.1 cm tall).
Standard finish options: White powder-coated finish, acrylic window panels in choice of clear or bronze.
Safety features: Interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, nonskid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Warranty: 36 months parts. Please see complete details here. -
Optional configurations: Type 1, 2 and 5
Cab sizes:
W30" x L46" X H78" (762 mm X 1168 mm x 1981 mm) Type 5 (standard)
W32" X L53" X H78" (813 mm X 1346 mm X 1981 mm) Type 5
W30" X L47" X H78"(762 mm X 1194 mm X 1981 mm) Type 1, 2
W32" X L54" X H78" (813 mm X 1372 mm x 1981 mm) Type 1, 2
Optional cab finishes: Custom color powder coat
Other options: Battery power for up/down, two-door for left and right access, keyed call station, motorized door operation, hydraulic door closer, custom cab size, flush-mount or surface-mount call send station. -
Applications: Residential, indoors
Capacity: 500 lb (228 kg)
Maximum travel distance: 23' (7 m) with 2 stops
Nominal speed: 20 ft/min (0.10 m/s)
Minimum floor cutout: 36" x 60.5" (914 mm x 1537 mm)
Minimum overhead required: 96" (2438 mm) to have 6" minimum clearance by code,
92" (2337 mm) requires variance
Drive: 2:1 roller chain hydraulic
Motor/pump: 24 VDC, 3 hp (2.1 kW) gear type
Power supply required: 110 VAC, 20 A, 60 Hz, single phase -
-

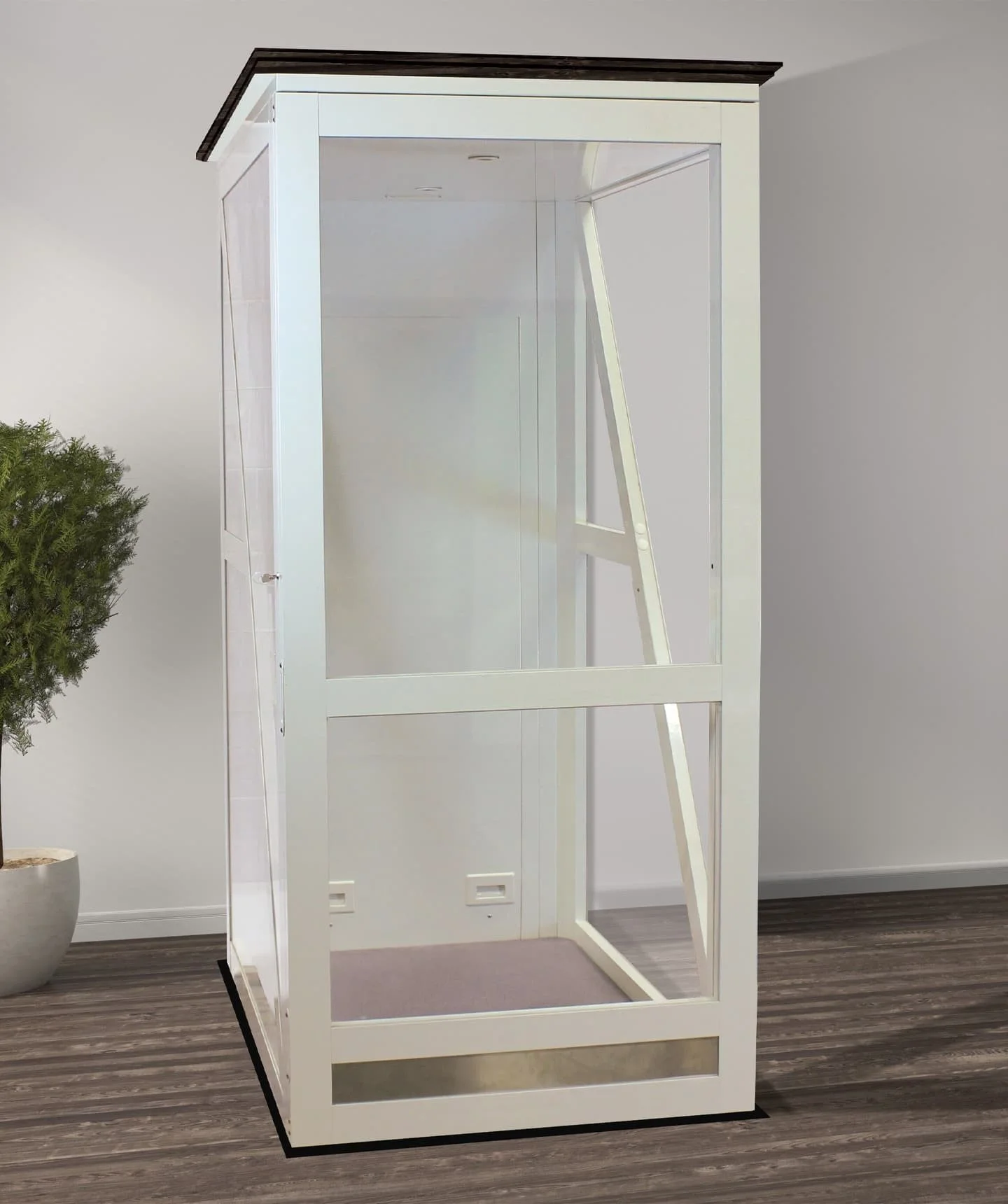

Through-the-floor accessibility lift with high capacity of 845 lb, built on the same drive system as the popular and robust Savaria V-1504 wheelchair lift
Stylish modern cab with full height acrylic panels and one-door access; for two-door (straight through) access, see the Telecab home lift
Non skid platform with gentle slope threshold for easy access of mobility device
Two cab sizes available including spacious 36" by 54" for larger mobility equipment access
Serves 2 stops and up to 23' travel
Operates by continuous pressure buttons; sensor to stop the unit if it detects an obstruction in either direction
Quick and easy installation requires minimal construction; no hoistway required
Enclosed drive tower keeps mechanical components safe and out of sight
Full height flush door, interior lighting inside 80" (2032 mm) height cab, with handrail
-
Innovative and space-saving design: “Vanishing” lift, sleek modern styling with transparent panels to blend with your home décor.
No hoistway or pit required: Fully enclosed drive tower designed for safety and aesthetics. Easier installation than traditional home elevator, with only a support wall and floor cutout required.
Ultra-high capacity: 845 lb, ideal for heavier mobility equipment.
Standard finish options: Powder-coated aluminum frame (white) with clear acrylic window panels.
Other standard features: Constant pressure controls for operation with keyless or keyed access on car and call stations, cab top sensor stops the unit from moving when pressure is detected, left or right hand opening door; hydraulic door closer.
Safety features: Interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, nonskid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Warranty: 36 months parts. Please see complete details here. -
Cab sizes:
W30" x L46" x H80" (762 mm x 1168 mm x 2032 mm)
W36" x L54" x H80" (914 mm x 1372 mm x 2032 mm)
Other options: Optional battery backup power for up to 5 trips up and down, in case of power failure -
Applications: Residential, indoor
Capacity: 845 lb (384 kg)
Maximum travel distance: 23' (7 m) with 2 stops
Nominal speed: 20 ft/min (0.1 m/s)
Floor cutout: 60.5" x 35.25" (1537 mm x 895 mm) for 30" x 46" cab, 68.5" x 41.25" (1740 mm x 1048 mm) for 36" x 54" cab
Minimum overhead required: 96" (2438 mm) to have 6" minimum clearance by code,
92" (2337 mm) requires variance
Drive: 2:1 roller chain hydraulic
Motor/pump: 24 VDC, 3 hp (2.1 kW) gear type
Power supply required: 110 VAC, 20 A, 60 Hz, single phase -
Customizable to Fit Your Space and Style
The Telecab series offers custom finishes and size options, ensuring the lift integrates seamlessly into your home’s design. Choose from acrylic windows in clear or bronze to complement your space, and enjoy the modern aesthetics of a powder-coated aluminum frame.
Why Choose the Telecab?
The Telecab series provides more than just accessibility—it offers a lifestyle upgrade. Whether you're ensuring your home is future-ready or creating access for a family member, the Telecab and Telecab17 give you freedom of movement without the hassle of complex construction.
Experience freedom. Move through your home with ease and elegance, every day.
Explore the Telecab Series Today
Ready to see how the Telecab or Telecab17 can transform your home? Call us now or fill out our form for a free consultation. Our experts will guide you through the process, from planning to installation, ensuring your lift fits your home perfectly.
