Custom Curved Stairlifts
Curved Stairlifts: Custom-Fit for Any Staircase
Navigating a staircase with curves, landings, or unique designs? Our curved stairlifts are custom-built to perfectly match your home’s layout, ensuring a safe and seamless ride. Designed for comfort and precision, curved stairlifts provide smooth access to every level of your home. We have many financing options available!
Ready to improve accessibility with a custom stairlift solution? Contact us today for a free consultation!

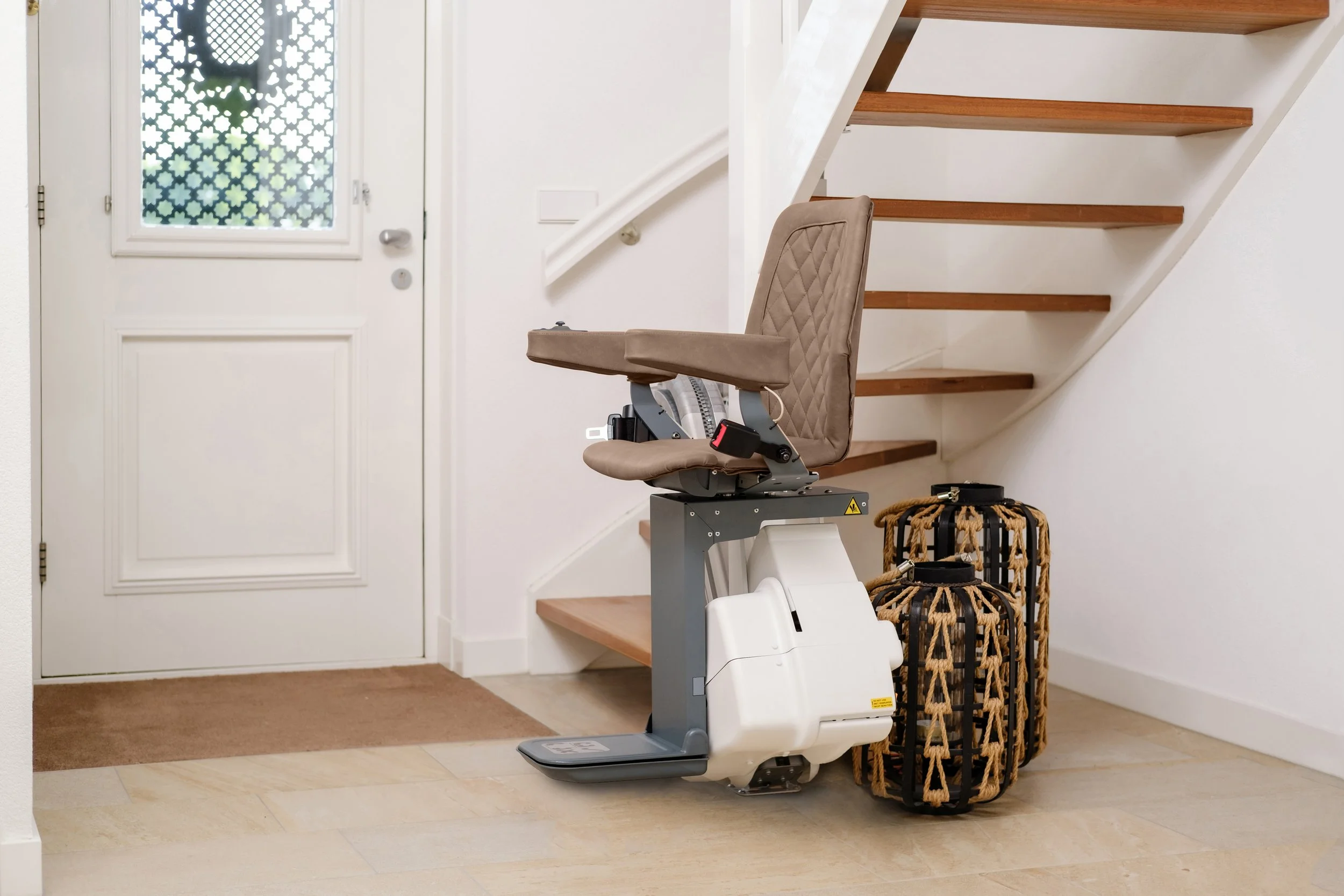

Featured Curved Stairlift Model: The UP Stairlift
The UP Stairlift is one of our featured solutions for curved staircases, chosen for its blend of luxury, comfort, and affordability. Unlike many curved stairlifts, the UP includes premium features — such as a power swivel seat and powered folding footrest — as standard. It also offers an optional powered hinge rail at the bottom landing, a rare advantage in curved designs.
With its modular aluminum rail, elegant upholstery choices, and smooth, quiet operation, the UP Stairlift is an outstanding option for homeowners seeking independence without compromise.
All Curved Stairlift Models
UP Stairlift
Luxury curved stairlift with 275 lb capacity, fast modular rail installation, standard power swivel and footrest, and an optional powered hinge rail for tight landings. Residential Unit.
Harmar Helix
Heavy-duty curved stairlift with 350 lb capacity, customizable rail for complex staircases, and smooth performance designed for larger riders in commercial and residential settings.
Savaria Stairfriend
Proven curved stairlift with 350 lb capacity, custom-fit rail for virtually any staircase, two seat style choices, and trusted reliability backed by Savaria’s extensive experience.
Harmar Helix Curved Stairlift
Overview
The Harmar Helix Curved Stairlift is the perfect solution for homes with curved, spiral, or multi-landing staircases. Constructed with durable materials and custom precision-bent rails, it provides a smooth, quiet, and comfortable ride from start to finish. Designed to mount closely to the wall, it maximizes space on your staircase for easy access for others.
Specifications
Weight Capacity: 350 lbs
Speed: 20 feet per minute (FPM)
Track Length: 16′, 18′, and 24′ standard options (extra rail available up to 164′)
Incline Limit(s): Up to 60°
Seat Size: 19″ x 15″
Footrest Size: 11″ x 12″
Folded Width: 16″ from the wall
Drive System: Steel rack and pinion
-
Rail Colors: Available in black or beige to match your décor.
Emergency Stop: Added safety for instant halting.
Key Switch: Provides added security and control.
Additional Call/Send Controls: Place extra controls for convenience.
Additional Charging Station: Flexibility for charging at multiple stops.
Outdoor Package: Weatherproof options available for outdoor use.
-
Direction limit switches: Ensures smooth stops at top and bottom.
Final limit switch: Provides an extra layer of protection.
Footrest obstruction sensors: Stops the lift if there’s an obstruction.
Seat swivel interlock: Ensures safe entry and exit.
Constant pressure controls: Prevents accidental movement.
Retractable seatbelt: For added safety during the ride.
Chassis obstruction sensors: Detects any obstruction on the track.
Overspeed brake: Prevents the lift from moving too quickly.
-
ETL listed
CSA B44.1/ASME A17.5
ASME A18.1 safety standard
Rated for both residential and commercial use
-
Limited Lifetime Warranty: Covers the drive system and structure.
2-Year Parts Warranty: Ensures coverage for parts in case of defects or issues.
1-Year Battery Warranty: Protects against battery-related failures.
1-Year Service Warranty: In addition to the manufacturer's warranty, we offer a 1-year service warranty, ensuring labor and servicing are covered for any issues related to installation or adjustments.
Maintenance Plan Options:
3-Year Maintenance Plan: Includes annual inspections, routine maintenance, and discounted service calls to ensure your stairlift continues operating at peak performance.
5-Year Maintenance Plan: Offers extended peace of mind with yearly maintenance checks, servicing, and priority scheduling for repairs.
-
Perfect for complex staircases: The Helix is custom-made to navigate even the tightest bends, curves, and landings.
Space-saving design: The lift mounts closely to the wall, keeping your staircase clear for others.
Smooth, quiet ride: Enjoy a comfortable, nearly silent experience every time.
Easy to use: Equipped with remote controls for call/send functionality and a swivel seat for safe entry and exit at landings.
The Perfect Fit for Your Home
The Harmar Helix Curved Stairlift combines functionality, safety, and customization to create a tailored solution for your home’s unique staircase. Whether you have multiple landings or tight curves, this stairlift is designed to fit seamlessly and offer a reliable, comfortable ride for years to come.
Interested in learning more about the Harmar Helix? Contact us today to schedule a free consultation and find the perfect solution for your home’s accessibility needs.
Savaria Stairfriend Curved Stairlift
Overview
The Savaria Stairfriend Curved Stairlift is designed to offer safe and smooth access over staircases with multiple levels, curves, or intermediate landings. This stairlift is a reliable solution for both residential use and some commercial applications, offering a quiet, smooth ride and customizable options to suit your space and comfort needs.
Specifications
Weight Capacity: Standard 300 lb (136 kg), optional 350 lb (160 kg)
Maximum Travel: 84′ (25.60 m)
Nominal Speed: 20 ft/min (0.1 m/s); 12 ft/min (0.06 m/s) through curves
Motor: 0.6 hp, 24V (DC)
Fold-up Depth: 16.25″ (413 mm)
Fold-out Depth: 27″ (686 mm); with offset footrest: 25.75″ (660 mm); with small footrest: 25″ (640 mm)
Range of Incline: 0˚ to 56˚
Applications: Residential, commercial* (where permitted by code)
Battery Operation: Battery-powered, allowing operation during power outages
-
Custom-Built Double Rail: Precision bent to exact specifications to fit staircases with curves, turns, or landings. The rail can be mounted on either side of the stairs and includes an out-of-the-way parking option for convenience.
Quiet and Smooth Operation: The Stairfriend operates with minimal noise, offering a comfortable ride with its sturdy rack and pinion drive system.
Battery Powered: Ensures reliable operation, even during power interruptions, with charging stations located at the top and bottom (optional intermediate landings available).
Safety Features: Equipped with overspeed governors and obstruction sensors to stop the chair if it encounters an object during travel.
Soft Start and Stop: The seat swivels and locks into position for safe boarding and deboarding, with a retractable seatbelt for additional safety.
LED Status Lights: Clear indicators to alert you of any issues with the system.
-
Seat Choices: Two styles available, designed for comfort and easy cleaning with synthetic leather.
Parking Options: Choose from 90º or 180º parking configurations to save space.
Other Options: Keyless access, emergency stop button, extra-long seatbelt, and a 5-point harness are available for added safety and convenience.
-
Custom Fit for Your Home: The Savaria Stairfriend is custom-designed to fit your unique staircase, including tight curves and multiple landings.
Reliable Performance: With its battery-powered operation, the Stairfriend ensures reliable use even during power outages, making it a dependable solution for your home.
Safety First: Packed with safety features, including obstruction sensors, overspeed governors, and reliable drive systems, the Stairfriend prioritizes your security and comfort.
Residential and Commercial Applications: While ideal for residential settings, the Stairfriend can also be used in commercial buildings where permitted by code. For commercial inquiries, please contact us for more details.
-
36-Month Parts Warranty: Enjoy peace of mind with a robust parts warranty for your stairlift. Please contact us for complete warranty details.
Maintenance Plans Available: Extend the life of your stairlift with our 3-year and 5-year maintenance plans, which include annual check-ups, routine servicing, and priority repair scheduling.
Your Stairlift Solution for Every Need
The Savaria Stairfriend Curved Stairlift is designed to make your home more accessible, no matter the complexity of your staircase. From tight curves to multiple landings, this stairlift combines custom-built precision with top-tier safety features and smooth operation. Whether for residential use or select commercial applications, the Stairfriend offers reliability, comfort, and peace of mind. With a range of customization options and a strong parts warranty, it's a smart, long-term solution for improving mobility and accessibility in your home.
Interested in the Savaria Stairfriend Curved Stairlift? Contact us today to schedule a free consultation and discover how this reliable, custom-fit stairlift can meet your accessibility needs!
How Do We Custom Manufacture The Lifts To Your Needs?
During our 30-minute onsite evaluation, we take multiple detailed photographs of your staircase. Using advanced software, we then create a precise 3D rendering of your staircase to ensure the custom rail is manufactured to fit your unique layout perfectly, providing a smooth and secure ride tailored to your home’s specific needs.
FAQs About Curved Stairlifts
Can Stairlifts Go Around Corners?
Yes, stairlifts can go around corners! Curved stairlifts are custom-designed to fit staircases with bends, landings, or even spiral steps. The rail is crafted to follow the exact shape of your stairs, ensuring a safe and comfortable ride.
Are Curved Stairlifts Safe?
Curved stairlifts are completely safe when installed by a professional. They come with various safety features like seat belts, safety sensors, and battery backups to ensure they function even during a power outage.
What Is the Cost of a Curved Stairlift?
Curved stairlifts tend to be more expensive than straight stairlifts because they are custom-made to fit the specific design of your staircase. However, reconditioned options can offer a more affordable solution without sacrificing reliability. At Keystone Accessibility, we work with you to find the best option for your budget.
How Long Does Installation Take?
Installation of a curved stairlift typically takes a few hours and requires no major construction. The lift is attached directly to the stairs, making the process quick and non-invasive.
Can Keystone Accessibility Help Me Find the Right Stairlift?
Absolutely! At Keystone Accessibility, we specialize in providing mobility solutions tailored to your home. We offer free consultations to help you figure out the best stairlift for your needs. Whether your stairs are straight or curved, we’re here to guide you through the process.
